Machine vision stroboscope DRELLOSCOP 1296

stationaryhigh-intensity110-230 V

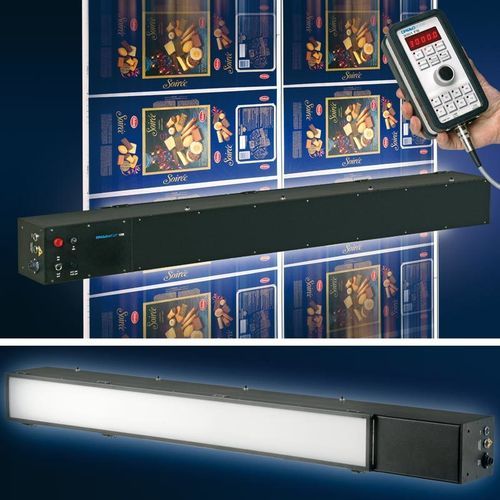

Stroboscope System for Web Monitoring DRELLOSCOP 1296

• for observation of printing and material webs on printing machines, rewinders or slitters
• high light intensity with homogeneous illumination for web widths up to 2000 mm
• robust, interference-free industrial design for continuous operation
• flash frequency up to 166,67 Hz / 10000 min-1
• internal and external control of the flash rate
• easy operation via remote control incl. magnetic holder
• slow-motion function
• adjustable phase shift between external trigger and flash
• dimmer function
• automatic shut-off function

Technical data

Power supply
230 VAC, 50 – 60 Hz (optional 115 VAC)
Power consumption
1296/3: max. 180 W
1296/4: max. 220 W
1296/5: max. 260 W
1296/6: max. 300 W
Dimensions (W x H x D)
1296/3: 1140 x 160 x 140 mm
1296/4: 1440 x 160 x 140 mm
1296/5: 1740 x 160 x 140 mm
1296/6: 2040 × 160 × 140 mm
remote control 3001 FB: 90 x 170 x 65 mm
Weight
1296/3: approx. 22 kg
1296/4: approx. 26 kg
1296/5: approx. 30 kg
1296/6: approx. 32 kg
remote control 3001 FB: approx. 0.8 kg
Frequency range in Hz / min-1
0.5 – 166.67 Hz / 30 – 10000 min-1
Internal control of the flash rate
twist knob on remote control 3001 FB
External control of the flash rate
rectangular pulses 0.3 – 24 Vs
Measured value display
5-digit 7-segment display on remote control 3001 FB,
display in Hz / min-1
Phase shifting
0° – 360° (for external triggering)
Slow motion function
beat frequency ± 2.000 Hz (for external triggering)
Automatic shut-off function
enableable - 3 min.
Light intensity (frequency-dependent)
max. 1880 lux (@ 30 cm) / max. 676 lux (@ 50 cm)
Illuminated area
1296/3: approx. 1000 x 360 mm (@ 30 cm) / approx. 1666 x 600 mm (@ 50 cm)
1296/4: approx. 1300 x 360 mm (@ 30 cm) / approx. 2166 x 600 mm (@ 50 cm)
1296/5: approx. 1600 x 360 mm (@ 30 cm) / approx. 2666 x 600 mm (@ 50 cm)
1296/6: approx. 1900 x 360 mm (@ 30 cm) / approx. 3166 x 600 mm (@ 50 cm)
Light source
quartz flash tubes 302-2
Number of light sources
1296/3: 3 pcs.
1296/4: 4 pcs.
1296/5: 5 pcs.
1296/6: 6 pcs.
Operating temperature
0° ... +50° C
Storage temperature
-20° ... +70° C
Protection class
IP30
IP50 (remote control 3001 FB)
Certification
CE



Contrast sensor available as an optional accessory.



Revisions in the course of technical progress reserved.
