Machine vision stroboscope DRELLOSCOP 1092

stationaryhigh-intensitywith separate lamp

Stroboscope system for large-scale industrial applications and the steel industry

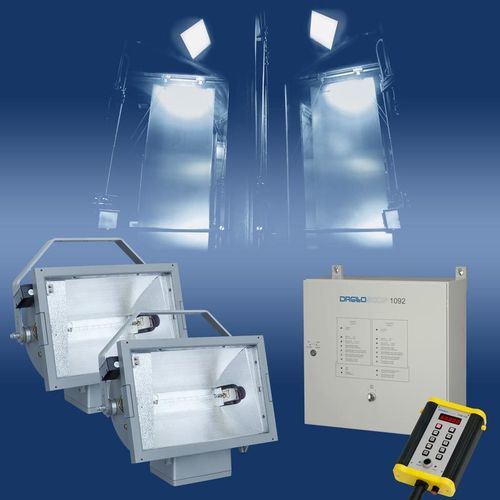

DRELLOSCOP 1092

• highest light output and maximum illumination for wide-area industrial applications and the steel industry
• visual quality control and imaging of surface defects (e.g., periodically repeating roller marks, chatter marks, scale coatings, or emulsion drops)
• robust, splash-proof industrial design for continuous operation
• electronic unit for wall mounting with detailed status indication
• selectable with one or two LE 4149 wide-beam lamps incl. mounting bracket
• no external ventilation of the high-performance flash tubes required and therefore no contamination of the interior of the lamp
• maintenance-friendly due to modular design
• easy operation via remote control unit 1090 FB incl. magnetic holder
• flash frequency up to 130 Hz / 7800 min-1
• (ext. triggering up to 2080 Hz with integrated frequency scaler)
• internal and external control of the flash rate
• slow-motion function
• adjustable phase shift between external trigger and flash
• adjustable brightness
• automatic shut-off function

Technical data

Power supply
230 VAC, 40 – 60 Hz (optional 115 VAC)
Power consumption
max. 1600 W
Dimensions (W x H x D)
electronic unit: 500 x 500 x 210 mm
lamp LE 4149 (without mounting bracket): approx. 560 x 500 x 320 mm
remote control unit 1090 FB: 210 x 290 x 90 mm
Weight
electronic unit: approx. 16 kg
lamp LE 4149: approx. 16 kg
remote control unit 1090 FB: approx. 2.5 kg
Frequency range in Hz / min-1
60 – 130 Hz / 3600 – 7800 min-1
Internal control of the flash rate
twist knob on remote control unit 1090 FB
External control of the flash rate
Impulses 0.5 – 30 V or DC voltage 0 – 10 V,
(optional DC control current 0 – 20 mA),
input frequency min. 60 Hz – max. 2080 Hz with integrated frequency scaler
Measured value display
5-digit 7-segment display on remote control unit 1090 FB,
display in Hz / min-1
Phase shifting
0° – 360° (for external triggering)
Slow motion function
beat frequency ± 9,500 Hz (for external triggering)
Automatic shut-off function
enableable – 2,5 min.
Flash duration
approx. 50 μs
Flash energy
max. 5,5 J, continuously adjustable
Light intensity (per lamp / frequency-dependent)
max. 1780 lux (@ 150 cm)
max. 1000 lux (@ 200 cm)
max. 640 lux (@ 250 cm)
Illuminated area (per lamp)
approx. 2430 x 1290 mm (@ 150 cm)
approx. 3240 x 1720 mm (@ 200 cm)
approx. 4050 x 2150 mm (@ 250 cm)
Light source (per lamp)
high-performance quartz flash tube 106-1
Operating temperature
0° ... +40° C
Storage temperature
-20° ... +70° C
Protection class
IP54
Certification
CE


Revisions in the course of technical progress reserved.
