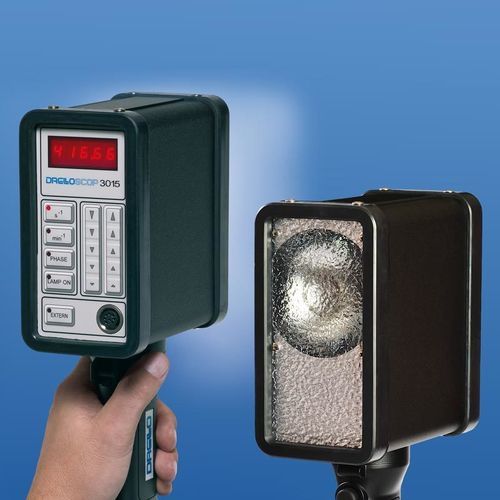

Digital stroboscope DRELLOSCOP 3015

high-intensityportablecompact

Portable Stroboscope DRELLOSCOP 3015 / 3015 HI

• compact handheld stroboscope with replaceable lithium-ion battery
• wide-area illumination with high light intensity
• flash frequency up to 416.66 Hz / 25000 min-1
• internal and external control of the flash rate
• adjustable phase shift between external trigger and flash

Technical data


Power supply
14.4 VDC (-10% +20%) - replaceable lithium-ion battery / 4 Ah
Power consumption
max. 40 W
max. 60 W (3015 HI)
Dimensions without handle (W x H x D)
85 x 165 x 150 mm
Weight
approx. 1,5 kg (without battery)
approx. 2,2 kg (with battery)
Frequency range in Hz / min-1
0.5 – 416.66 Hz / 30 – 25000 min-1
Internal control of the flash rate
membrane keypad
External control of the flash rate
external transducer, pos. impulses, 0.5 – 30 Vs or optocoupler rectangular signal l4 – 12 Vs
Measured value display
5-digit 7-segment display,
display in Hz / min-1
Phase shifting
0° – 360° (for external triggering)
Light intensity (frequency-dependent)
DRELLOSCOP 3015: max. 5970 lux (@ 30 cm) / max. 2150 lux (@ 50 cm) / max. 537 lux (@ 100 cm)
DRELLOSCOP 3015 HI: max. 10280 lux (@ 30 cm) / max. 3700 lux (@ 50 cm) / max. 925 lux (@ 100 cm)
Illuminated area
Ø approx. 140 mm (@ 30 cm) / Ø approx. 230 mm (@ 50 cm) / Ø approx. 460 mm (@ 100 cm)
Light source
quartz flash tube 307-2
Operating temperature
0° ... +50° C
Storage temperature
-20° ... +70° C
Protection class
IP50
Certification
CE



Revisions in the course of technical progress reserved.
