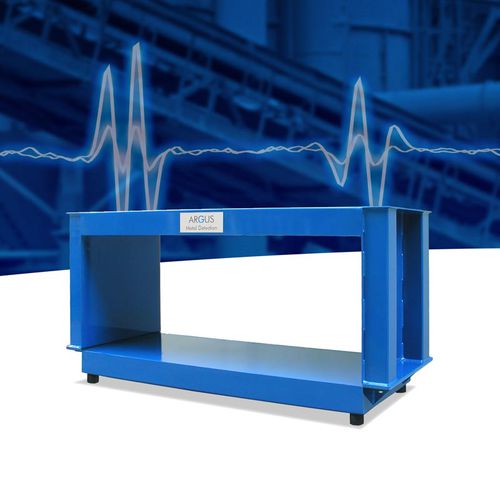

Tunnel type metal detector ARGUS 3

for bulk materialsfor plasticsdigital

ARGUS 3 – Tunnel Metal Detector System with Dividable Aperture

■ automatic system adaptation to operation requirements
■ user-friendly operation
■ easy installation including retrofitting
■ long-term stable function by automatic adjustment
■ DSP multi-channel-technology for highest sensitivity of all kinds of metal
■ suppression of the side-effects related to products and peripheral disturbances by digital filters
■ suitable for continuous operation (three shifts)
■ optimum price-performance ratio
■ each unit is 100 % factory tested and customised in advance


Technical data

Search coil
Standard dimensions
inner width: 850 mm – 1650 mm
inner height: 300 mm – 500 mm
(special sizes on request)

Housing
sheet steel 4 mm (painted), optional in stainless steel, vibration absorber pre-mounted Ø 50 mm with 40 mm height

Protection class
IP65

Control unit
Display
LED indicator lights for metal-alarm and monitoring

Interfaces
serial data Interface for configuration and documentation with a standard PC and terminal software

Outputs
metal detection and self-monitoring combined
1 floating changeover contact 250 VAC / 5 A
1 non-floating contact 230 VAC / 1 A

Inputs
start-up delay
reset of metal-alarm

Protection class
IP65

Dimensions
300 x 300 x 210 (mm)

Power supply
optionally 85 - 264 VAC ±10 %, 50 - 60 Hz
or 18 - 36 VDC

Options & Accessories
■ control unit in stainless steel housing
■ certified calibration set
■ control unit attached on the side of search coil



Revisions in the course of technical progress reserved.
