Bulk material metal detector ARGUS 1

digitalhigh-sensitivityhigh-precision

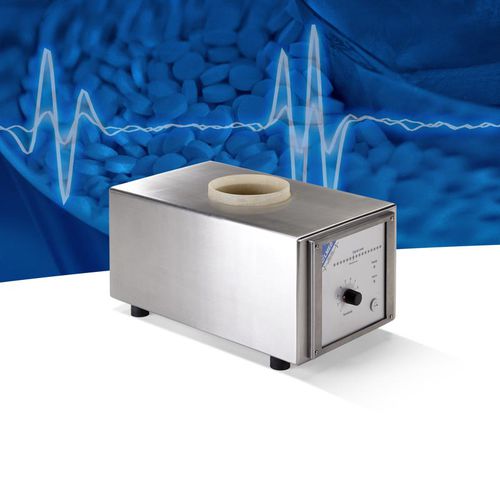

ARGUS 1 – Free Fall Metal Detector for Bulk Materials

■ automatic system adaptation to operation requirements
■ user-friendly operation
■ easy integration into existing conveyor systems
■ metal separation of all kinds of metal in bulk materials: ferrous, non-ferrous (like aluminium or copper) and ■ stainless steel
■ DSP multi-channel-technology for highest sensitivity of all kinds of metal
■ suppression of the side-effects related to products and peripheral disturbances by digital filters
■ suitable for continuous operation (three shifts)
■ optimum price-performance ratio
■ each unit is 100 % factory tested and customised in advance


Technical data

Dimensions (inner diameter)
Ø 125 mm / Ø 200 mm

Housing
stainless steel

Protection class
IP65

Installation
available for horizontal and freefall operation

Interfaces
serial data Interface for configuration and documentation with a standard PC and terminal software

Outputs
2 floating changeover contacts 250 VAC / 2.5 A
transistor output (optional)

Inputs
2 inputs 12 - 24 VDC (e.g. for flap-monitoring)

Power supply
85 - 264 VAC ±10 %, 50 - 60 Hz

Accessories (optional)
certified calibration set



Revisions in the course of technical progress reserved.
