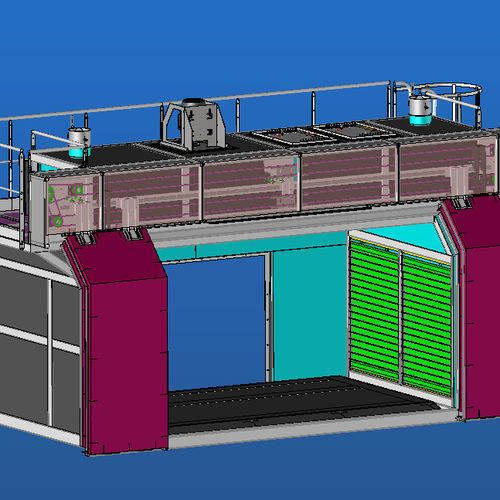

Batch oven

chamberdryingpreheating

Oven Support frame made from electrically welded tubular sections, protected against corrosion by aluminising the hot and cold sections. Laboratory cladding: welded ‘alusi’ sheet metal panels. The cladding is mounted so that it can expand freely in the frame to accommodate temperature variations and limit heat loss. The laboratory is equipped with side supply ducts with adjustable side to ensure uniform air distribution throughout the enclosure. Thermal insulation: provided by 2 layers of 50 mm ‘BIO’ fibre panels on the laboratory side and 50 mm ‘BIO’ fibre panels on the laboratory side. The total insulation thickness is 250 mm. External cladding: panels welded to the frame. The external cladding and frame are independent of the laboratory, ensuring a low temperature on the panels. Two heating units provide the heat. Each unit burner and 2 mixing fans. Two air intake registers with filter Two controlled extraction registers A guillotine door made of painted steel sheet on the outside and ‘ALUSI’ sheet on the inside. sheet metal inside. Door fitted with fibreglass seal and side guides. Tensioning of the soft strands of the roller chains. The chains are connected to a frame guided by rollers, connected to the oven door by 4 connecting rods, The weight of the mobile frame allows the veneer to be placed in the lowest position. A manual pin lock at the top for maintenance operations. maintenance operations. The guillotine door will be operated by a two-hand control located nearby. A platform on top of the oven will be equipped with railings and a staircase to facilitate maintenance. staircase to facilitate maintenance
