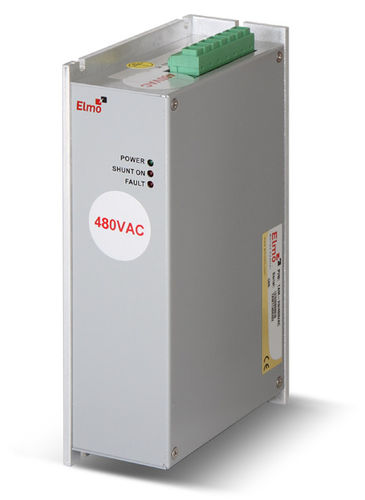

AC/DC power supply 36 - 528 VAC, 50 - 678 VDC, 1 100 - 28 000 W | Tambourine-20

The ELMO's Tambourine (TAM-20) direct-to-mains power supply features rectified AC voltages up to 3 x 528 VAC, into DC voltage (filtered) with the output of 20 A, with the maximum of 40 A. They are made to be used for ELMO servo drives, that do not contain an integrated power supply. Multiple servo drives can be powered with one TAM-20, depending on the power usage of servo drives. They operate from the mains (for isolated servo drives) or via isolation transformer. They feature high capacitance - low output voltage drops, regenerating braking capability, built-in inrush current limiters, internal EMC filtering, etc. They are panel mounted, and have a “Shunt On” duty cycle limiter, as well as three diagnostic LEDs. They are UL and CE compliant.
