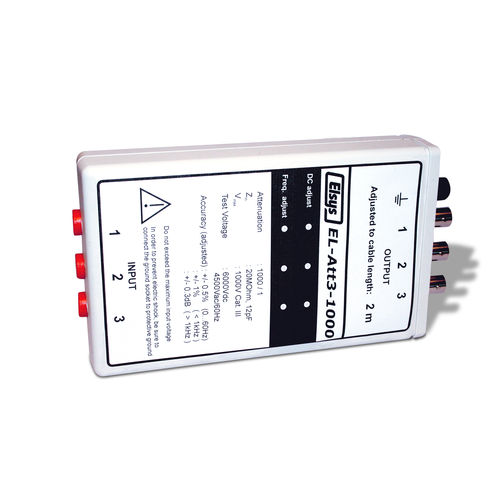

Passive probe El-Att3-1000
high-voltagefor oscilloscopesmeasurement

Passive probe - El-Att3-1000 - Elsys AG - high-voltage / for oscilloscopes / measurement
Passive probe - El-Att3-1000 - Elsys AG - high-voltage / for oscilloscopes / measurement
Add to favorites
Compare this product
Go to the Elsys AG website for more information

Characteristics

Type
passive
Measured value
high-voltage
Applications
for oscilloscopes
Domain
measurement, laboratory, for research and development

Description

3 Channel, 1000:1 High Precision Voltage Attenuators - Input: 3x 4mm Safety plug, touch protected along IEC/EN 61010-1, - 1x 4 mm plug protective GND - Attenuation: 1000 : 1 - Zin: 20 MOhm, 12 pF - Vmax: 1000V Cat. III - 5kV test voltage - Accuracy : DC bis 60 Hz: ± 0.5 % - Dimensions: 95 x 165 x 35 mm, 0.4 kg - Output: 3x BNC connectors
