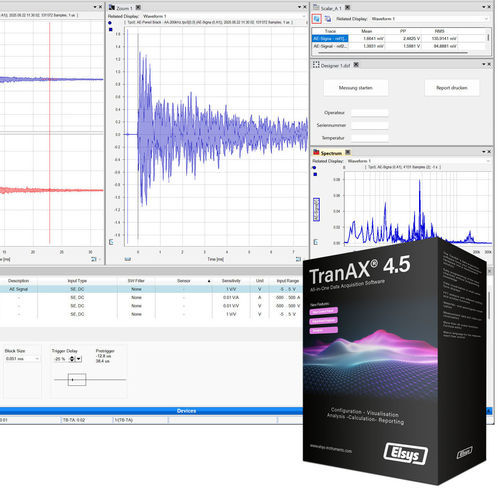

Programming software TranAX 4.5

measurementdata acquisitionpost-processing

TranAX® 4.5 is a powerful data acquisition software that transforms measurement hardware into a comprehensive and flexible measurement solution. It combines a user-friendly interface with a wide range of functions, enabling easy configuration of input channels without requiring advanced programming knowledge. The software provides versatile tools for visualizing measurement data, including multi-waveform displays, X-Y plots, FFT analysis, and spectrograms. In addition, TranAX® supports video synchronization and offers more than 40 scalar functions as well as a formula editor with extensive mathematical and logical functions. With version 4.5, TranAX® expands its capabilities with several new features: New Control Panel enables signal-oriented configuration. Users define the signal type, from which the appropriate hardware settings are automatically derived. Post-processing functions can also be assigned directly, and all channel settings can be edited centrally in a single table. Designer allows the creation of customized graphical user interfaces, programmed with the formula editor. It supports reactions to events such as button clicks, and Designer dialogs can either be embedded into the layout or opened in a separate window. Experiment Explorer replaces the Signal Source Browser and provides a central overview of stored and calculated signals. Signal sources can be easily switched between hardware and files, allowing quick comparison of measurements. In addition, post-processing operations such as filters or user-defined functions can be applied directly. For advanced analysis, TranAX® offers the Measurement Flow Control (MFC), which provides a flexible way to automate measurement workflows and perform extensive post-processing or batch evaluations. TranAX® 4.5 is fully compatible with all TraNET devices and various Elsys measurement cards. The software is available in both German and English and is offered as a licensed full version as well as an LE version that includes a 30-day trial with the full range of functions.
