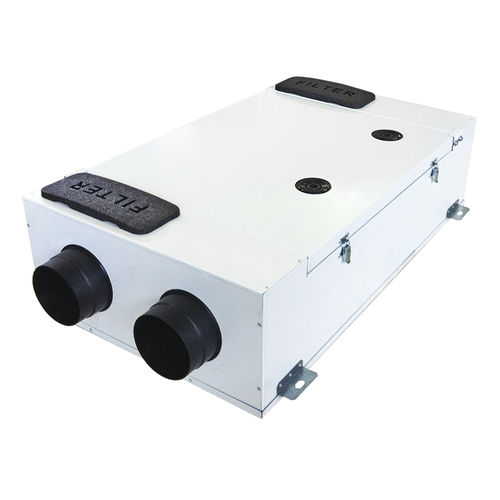

Wall-mounted fan QR180A

centrifugalcoolingextraction

Continuous Mechanical Ventilation with Heat Recovery • Provides whole house ventilation • Lowers heating bills • Ultra quiet • Advanced control features A continuously running Mechanical Ventilation with Heat Recovery (MVHR) system simultaneously extracts air from wet rooms while supplying fresh, filtered air to the habitable rooms in a home. MVHR is widely recognised as the very best method of ventilating modern new build or re-furbished, energy efficient homes. Fast installation Ease of installation: fixing bracket supplied to hang the unit easily on the wall. Simplified electric wiring: the unit is supplied pre-cabled. Easy maintenance ISO Coarse 60% (G4) filters easy removable for cleaning. The unit is also provided with the ISO ePM1 60% (F7) filter accessory at the intake side. Usability Integral automatic bypass for free cooling during the summer season. Automatic anti-frost protection to prevent frost building up on the intake side of the heat exchanger. Two drainage holes to meet climate requirement. Tested to the latest standards Units are tested in the TÜV Rheinland accredited internal laboratory according to the operating document IEC OD 2048 (level CTF1) for the IEC 60335-1 and IEC 60335-2-80 Standards, meaning accurate, up to date information on electrical safety, performance and noise level that can be relied upon. Designed and manufactured in accordance with EN60335-2-80 (Low Voltage Directive) and the EMC Directive (Electromagnetic Compatibility).
