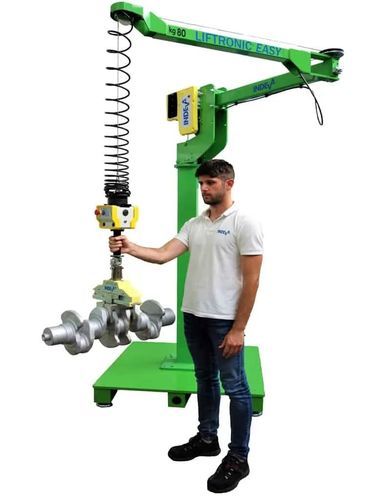

Electric manipulator Liftronic

with gripping toolfor materials handlingintelligent

Overview
The Liftronic weightless manipulators from INDEVA provide an advanced load-handling solution designed to improve workplace ergonomics and efficiency in industrial applications requiring precise positioning and fast movements.

Operation and control
The Liftronic manipulator enables lifting, rotating and moving loads in all directions with electronic weight-balance control. It is operated via a sensitive handle that detects hand motion without buttons for intuitive control and improved precision. The system features automatic rebalancing to adapt instantly to weight variations (e.g., emptying tanks or bags) and a "Float Mode" for handling with hands-on-load and finer positioning.

Advantages over traditional hoists

• Positioning accuracy: instant adaptation to load changes and Float Mode for finer adjustment.
• Intuitive use and ergonomics: sensitive handle and elimination of manual effort.
• Speed and responsiveness: smooth movements and immediate system reaction.
• Manoeuvrability and productivity: compact, lightweight end-effectors improve visibility and flexibility.

Innovation and connectivity
The system includes Industry 4.0-oriented features: wireless connectivity for data exchange with the customer's system, real-time activity monitoring and remote diagnostics/troubleshooting via Wi‑Fi connection. Integration with App-Indeva and INDEVA Gateway is supported.

Sustainability commitment
Efficient, low-energy operation contributes to a reduced carbon footprint; case studies show improvements in productivity, ergonomics and safety.

Features

• Automatic weight detection and auto-balancing
• Integrable with App-Indeva and INDEVA Gateway
• Advanced safety functions (prevents movement without an operator in control)
• Ergonomic design
• Custom end-effectors available
• Compact, lightweight gripping devices
• Fast, sensitive and precise handling
• Low carbon emissions

Structure table
Structure | R1 (m) | 2.5 | 3 | 3.5 | 4 | 4.5
L Light | Load (kg) / R2 (mm) | 80 / 450 | 60 / 550 | 40 / 650 | – / – | – / –
H Heavy | Load (kg) / R2 (mm) | 260 / 630 | 190 / 760 | 140 / 880 | 105 / 1020 | 78 / 1140
X Extra | Load (kg) / R2 (mm) | – / – | 320 / 860 | 320 / 1005 | 280 / 1150 | 220 / 1300

Technical characteristics / specifications

• Maximum gross capacity: from 80 to 320 kg (including lifting tool)
• Power supply: 110/230 V AC – 50/60 Hz
• Power consumption: max. 700 VA
• Vertical travel: up to 2.80 m
• Electronic balance control and auto-balancing
• Float Mode for hands-on-load handling
• Sensitive handle for intuitive, button-free control
• Safety functions to prevent unintended movement
• Wireless connectivity for system integration and remote diagnostics
