The EP8245 is a PMC single board computer based on the NXP PowerQUICC II MPC8245 PowerPC processor. It is targeted at expansion options for a CompactPCI (cPCI) carrier board.

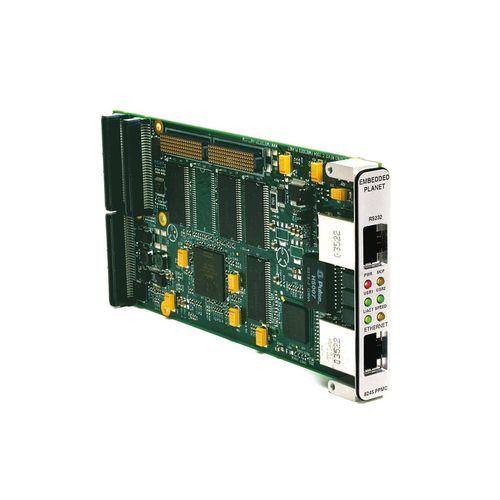

The EP8245M is a PrPMC compatible single board computer module that takes advantage of the NXP PowerQUICCC II MPC8245 PowerPC processor. It is a highly versatile board that can operate as stand alone module or in PrPMC monarch and non-monarch modes on a carrier board such as a Compact PCI blade. By integrating all of the features of the PowerQUICC II technology onto one single board, the computing engines reduce Time-To-Market and increase product reliability. This module can be used standalone and includes a MiniPCI interface for Wireless LAN applications.
Features
Runs as a standalone development board!
Processor: NXP PowerQUICC II MPC8245 PowerPC
Ethernet: 1 x 10/100 Base T Ethernet
Expansion: PCI 2.2 bus through PMC Connectors
I2C Devices: EEPROM, RTC, Temperature Sensor
Power Supply: 5.0 VDC single power supply
Form Factor: PrPMC
Debug: COP/JTAG
