ESD simulator ESDEX series

industrialfor automotive applicationsfor aeronautical applications

Overview
The new ESDEX series is a modular, compact ESD generator / simulator (ESD gun) designed and manufactured by EMC PARTNER. It is the next-generation successor to the ESD3000 and is engineered for maximum comfort, intuitive operation, flexibility and high performance. The series is available in 8 kV, 16 kV and 30 kV versions and supports a broad range of interchangeable RC networks to ensure compliance with international standards including IEC 61000-4-2, ISO 10605, RTCA DO-160 and MIL-STD-461.

Key features

• Modular architecture with exchangeable RC networks and test tips
• Automatic RC module recognition
• Ergonomic, perfectly balanced gun design with low-resistance round trigger and programmable side buttons
• Integrated tip LED for precise EUT contact point identification
• Large 4" capacitive touchscreen for intuitive control and clear readability
• Rechargeable battery: up to 12 hours operation; fast charging (USB-C) to 80% in ~80 minutes
• USB-C and SD-card connectivity for fast charging, data transfer, reporting and firmware/setting exchange
• Free firmware updates and free software for data transfer, setup management and reporting
• Fire mode (Air Discharge) allowing repeated impulses up to 500 Hz
• Bleed-off function to discharge residual energy after each impulse
• Self-check routines for charge voltage, discharge relay and internal discharge circuit with result storing/reporting
• Reduced proximity effect and measures to reduce unintended radiated emissions

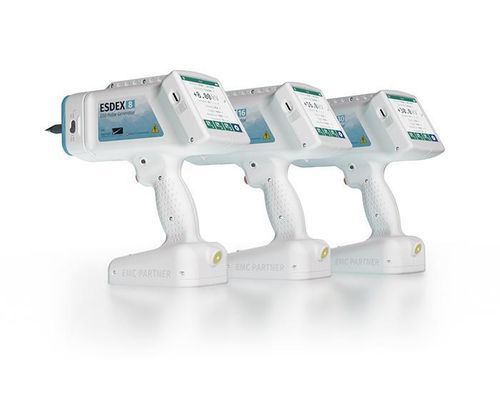

Models

• ESDEX8 — 8 kV ESD generator / simulator with fixed 150 pF / 330 Ω RC network. Suitable for R&D and development stage testing.
• ESDEX16 — 16 kV ESD generator / simulator with exchangeable RC networks. Ideal for product standard testing up to 16 kV; upgradeable to 30 kV.
• ESDEX30 — 30 kV ESD generator / simulator with exchangeable RC networks. Suitable for higher voltage requirements such as automotive and larger laboratories.

Applications
The ESDEX series covers a wide range of application areas: industrial (IEC 61000-4-2), automotive (ISO 10605), defence (MIL-STD-461), avionics (RTCA DO-160 Section 25), e-mobility and general consumer/industrial electronics testing. A variety of accessories are available for each application area.

RC modules (examples)
Available exchangeable RC / discharge networks include (selection):

• NW-C150R330-B — 150 pF / 330 Ω, AD & CD up to 30 kV, with bleed-off (for IEC 61000-4-2 & ISO 10605)
• NW-C150R330 — 150 pF / 330 Ω, AD & CD up to 30 kV, no bleed-off
• NW-C150R2000-B — 150 pF / 2000 Ω, AD & CD up to 30 kV, with bleed-off (ISO 10605)
• NW-C150R2000 — 150 pF / 2000 Ω, AD & CD up to 30 kV, no bleed-off
• NW-330R2000-B / NW-330R2000 — 330 pF / 2000 Ω options
• NW-C330R330-B / NW-C330R330 — 330 pF / 330 Ω options
• NW-C150R330-F — fast risetime 150 pF / 330 Ω, CD up to 30 kV, with bleed-off
• NW-C200R50 / NW-C200R50-B — 200 pF / 50 Ω (wearables), AD & CD up to 16 kV (with/without bleed-off)

Accessories (selection)

• ESD-TARGET — 2 Ω gold plated target per IEC 61000-4-2 / ISO 10605, includes SMA cable & attenuators, max 30 kV
• ESD VERI-TARGET / VERI-TARGET ADAPTER — adapters for calibration, gold plated
• ESD-VERI-V — ESD voltage measurement divider (20 GΩ, ratio 1:20,000), max input 32 kV
• ESDEX-STAND — carbon tripod support for IEC 61000-4-2 / ISO 10605 testing (adjustable height)
• ESDEX-GND-SUPPORT — return cable pullback stand for waveform verification (requires stand)
• ESD-VCP50 — vertical coupling plate IEC 61000-4-2
• ESD-BLEEDER-CABLE (150 / 200) — bleeder resistor cables (2 x 470kΩ) up to 30 kV
• ESDEX-H-FIELDS / ESDEX-E-FIELDS — magnetic / electric field loops / plates for weak-point analysis
• ESD-HCP-AUTO / ESD-HCP-AUTO LARGE — indirect coupling planes per ISO 10605 (various sizes)
• ESDEX-BATTPACK-4C — high-capacity 4-cell battery pack (6900 mAh) for extended testing

Software & Reporting
Free software is provided for data transfer, loading/saving user setups and tests, downloading reports and installing firmware updates. The ESDEX-TESTSUITE option assists in creating customized test plans and reports according to IEC 61000-4-2 and ISO 10605. Reports can be exported in formats such as PDF, CSV and HTML.

Safety & Performance
The ESDEX units feature automatic bleed-off, self-check tests, reduced proximity effect measures and high-quality components to ensure reliable, reproducible and safe ESD testing results.

Caractéristiques / spécifications techniques

• Series name: ESDEX Series
• Available voltages: 8 kV, 16 kV, 30 kV (model dependent)
• RC networks: multiple exchangeable modules (examples listed above)
• Standards supported: IEC 61000-4-2, ISO 10605, RTCA DO-160, MIL-STD-461
• Triggering: ergonomic trigger + programmable side buttons
• Display: 4" capacitive touchscreen
• Connectivity: USB-C port, SD card port, data transfer and firmware update support
• Battery: rechargeable, up to ~12 hours operation, fast charge to 80% in ~80 minutes (via USB-C)
• Fire mode: repeated Air Discharge impulses up to 500 Hz
• Functions: automatic RC recognition, bleed-off, self-check, reporting (PDF/CSV/HTML), free firmware updates
• Accessories: targets, verification adapters, stands, coupling plates, bleeder cables, field loops, high-capacity battery pack
• Design: ergonomic grip, perfect balance, integrated tip LED
