Voltage testing device TC-STmanualhigh-voltage
Add to favorites
Compare this product
Characteristics
- Test type
- voltage
- Operating mode
- manual
- Other characteristics
- high-voltage
Description

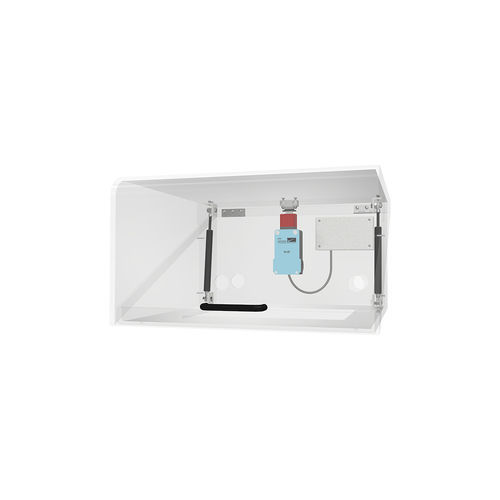

Test cabinet for EUT with maximum dimensions 20 X 20 x 30cm. Mounted on top of the generator to cover high voltage outputs. Increases personnel safety. Can be used together with generators having output on top up to 30kV. Electro-mechanical locking mechanism to prevent opening when high voltage is enabled.
Your Benefits
• Usable with MIG generators with HV output on top.
• Safety Interlock switch stops generator when cabinet open.
• Red and gren warning lamps connected to safety circuit
• Insulation withstand 1.2/50µs up to max. 36kV.
• EUT dimensions 30x20x20cm
