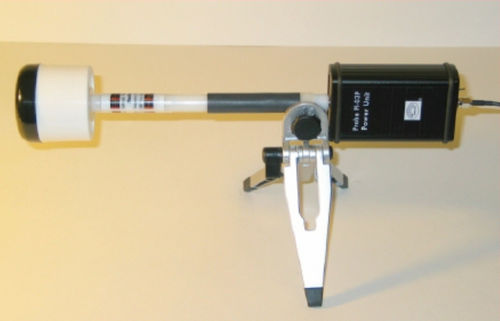

Electrical field probe PI-03P

testsamplingisotropic

100 MHz-18 GHz, 70-1400 V/m. Broadband isotropic electric field probe PI-03P measures the pulsed RF field produced by the microwave radars. It has fast sampling capability measuring the field strength of RF bursts (pulses) as short as 1 us (one microsecond). It operates in the frequency range 100 MHz – 18 GHz, covering the test requirements of MIL STD-461 and automotive EMC GM and Ford specifications. Main Parameters Operates with RFP-05, RFP-05M meters. • Diode based: 3-Axial isotropic sensor. • Sensitivity: 0.8 V/m. • Linearity: +/- 0.5 dB (1-400 V/m), +/- 1 dB (400-800 V/m). • Dynamic range: >60 dB (single range). • Frequency response (without correction factors): +/- 1.5 dB (10 MHz–6 GHz), -3 dB @ 3 MHz, +/- 3 dB (6 GHz–12 GHz). • Frequency response (with correction factors): +/- 1.0 dB (10 MHz–12 GHz), +/- 3 dB (12 GHz–18 GHz). • Rotational isotropicity: +/- 0.5 dB (3 MHz-6 GHz), +/- 2 dB (6 GHz –18 GHz). • Calibration accuracy (at specified freq.) <1 dB. • Temperature: 5-40°C, • Humidity: RH 10-90%, non-condensing. • Temperature error: 2 V/m). • UK NPL or NIST traceable calibration. • Small size: LxD: 9.0×2.25 inch, 230×58 mm. • Weight: 0.2 lb, 100 g. • Operates with both RFP-04 and RFP-05 meters. • Designed and made in the USA.
