Spectrum analyzer SFA-G

frequency responsebenchtopportable

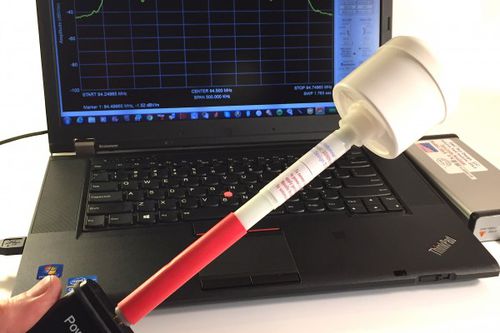

Active broadband isotropic antenna combined with portable USB powered spectrum analyzer. OFA-G antenna has frequency response independent of antenna or electric field orientation. It offers broad dynamic range for the variety of RF regulatory, safety, EMC, wireless and telecommunications applications. Spectrum analyzer SA-S/J displays the frequencies and field strength of selected signals, allowing all results to be viewed and stored on PC. Specification Specification of USB Spectrum Analyzers: We offer two models of USB spectrum analyzers: SA-S and SA-J Standard SFA-G set Includes: • Antenna unit OFA-G. • Power unit PU-5G. • Spectrum analyzer SA-S or SA-J. • Custom 5 ft. ferrite beaded RF cable. • AC/DC universal plug-in charger. • USB cable for PC connection. • Table tripod with mounting clip. • Users Manual with documentation. • Rugged plastic storage case. Optional Accessories SA-S: 1Hz-4.4 GHz SA-J: 100 KHz – 12.4 GHz. Dynamic range: -151 to +10 dBm. Res. BW: 0.1 Hz-250 KHz. Dimensions: 7″x3″x1″. Power: Powered by USB port. Warranty and Calibration Period: 1 year. Optional Accessory: Custom length RF cables. Antenna Unit (LxD) 9.0″x2.25″. Power Unit: 3.75″x2.25″x1.25″. •Antenna rechargeable battery Operation time: 10 hours. •Warranty and Calibration Period: 1 year. • Calibration certificate, traceable to UK NPL, with measured Antenna Factors and Rotational Isotropicity.
