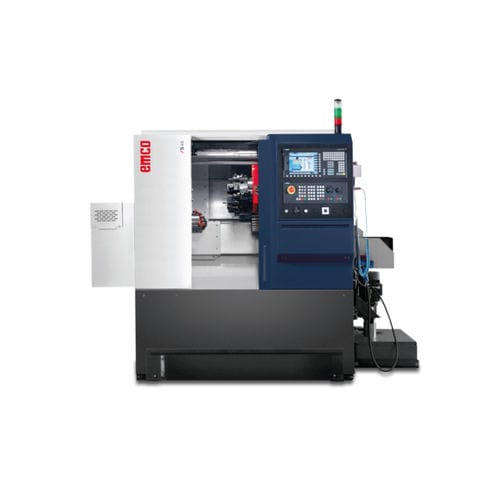

CNC lathe S45horizontal2-axisA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Spindle mount
- A2-6
- Number of tool stations
- 12 tools
- Applications
- for bar machining, for shaft machining
- Other characteristics
- high-performance
- Spindle speed
Min.: 0 rpm
(0 rad.min-1)Max.: 6,300 rpm
(39,584.067 rad.min-1)- Part diameter
170 mm
(7 in)- Maximum part length
310 mm
(12 in)- Maximum cutting diameter
170 mm
(7 in)- Bar capacity
45 mm
(2 in)- Axe X
160 mm
(6 in)- Axe Z
310 mm
(12 in)- Nominal power
11 kW
(15 hp)- Maximum torque
70 Nm
(52 ft.lb)- Coolant capacity
230 l
(61 gal)- Overall lenght
2,250 mm
(89 in)- Overall width
1,675 mm
(66 in)- Overall height
1,940 mm
(76 in)- Weight
3,300 kg
(7,275 lb)
Description
Extremely solid machine bed, highest thermostability
Top processing precision
State-of-the-art control technology with
Sinumerik 828D or Fanuc Oi TD with ShopTurn and ManualGuide i
Made in the Heart of Europe
