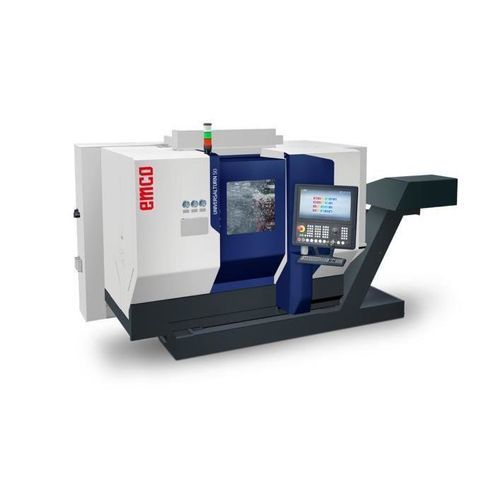

CNC lathe turn 50

universalrigidVDI 30

Product Overview: - EMCO UNIVERSALTURN 50 – Universal lathe, precise and powerful! - New, completely revised modular system and basic design - Outstanding basic stability - Optimal vibration damping - Maximum cutting efficiency - High flexibility - Ergonomic design - Maximum precision - Top-quality universal turning, drilling, and milling – even for batch sizes of 1 Technical Data: Work area - Travel in X/Y/Z: 175 / +40 - 40 / 510 mm - Bar diameter: 50 / 50.8 mm - Spindle bore hole: 59 mm - Max. turning diameter: 200 mm - Swing over bed: 430 mm - Rapid motion speeds in X/Y/Z: 24 / 10 / 30 / 30 m/min (X/Y/Z/Z2) - Feed force in X/Y/Z: 4000 / 4000 / 6000 N Main spindle - Max. speed: 6,200 rpm - Spindle nose: DIN 55026 KK5 - Max. torque: 71 / 143 Nm (belt drive M+MY) / 105 / 147 Nm (direct drive SMY) Counter spindle - Max. speed: 6,200 rpm - Spindle nose: DIN 55026 KK5 - Max. torque: 105 / 147 Nm (direct drive SMY) Tool turret - VDI size: VDI 30 (M+MY) - Number of tools: 12 - Driven tools: 6 - Max. speed: 5,000 rpm - Max. drive power: 4 kW - Max. torque: 16 Nm Tool turret 2 - VDI size: BMT45P - Number of tools: 12 - Driven tools: 12 - Max. speed: 0-12,000 rpm - Max. drive power: 8.8 kW - Max. torque: 21 Nm General data - Dimensions (LxWxH): 3320 x 2350 x 2100 mm (M+MY) / 3500 x 2600 x 2100 (SMY) Highlights: - High-precision turning centre for efficient complete machining of bars up to 51 mm bore - Integrated Y-axis for extended milling and maximum machining versatility - Highly dynamic drive systems for fast machining cycles and maximum accuracy - Compact counter spindle for precise rear-side machining without additional re-clamping - Powerful tool turret with up to 12 driven tool positions - Scalable automation solutions – from integrated swivel loaders to gantry systems - Stable cast machine bed for maximum rigidity, damping and process reliability - Absolute measuring system for maximum repeat accuracy without reference point homing - Intuitive operation with SINUMERIK ONE – optionally available with FANUC 0i plus control from 2026 - Perfectly coordinated machine concept for applications in mechanical engineering, automotive, medical technology, defence and more - Made in the Heart of Europe Versions: - UNIVERSALTURN 50 M: The ideal solution for precise turning and simple drilling/milling operations. - UNIVERSALTURN 50 MY: Additionally equipped with integrated 60° Y-axis for even greater flexibility and extended milling applications. - UNIVERSALTURN 50 SMY: The top-of-the-range model with direct drives on the main and counter spindles, BMT turret with direct drive and a Y-axis for demanding complete machining in a single operation. Software/Control: - Sinumerik ONE with Operate: Universal and flexible CNC system suitable for almost all technologies. Sets standards in dynamics, precision, and network integrability. - EMCONNECT digital process assistant included as standard. Allows switching between apps and control system with a single click. All production-relevant data can be displayed in full-screen or sidebar view. - Digital twin is an integral part of the CNC control, merging virtual and real control for reduced product development and time-to-market. - Improved networking and data communication capabilities. - Significantly increased CNC performance and shorter non-productive times. - Complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC.
