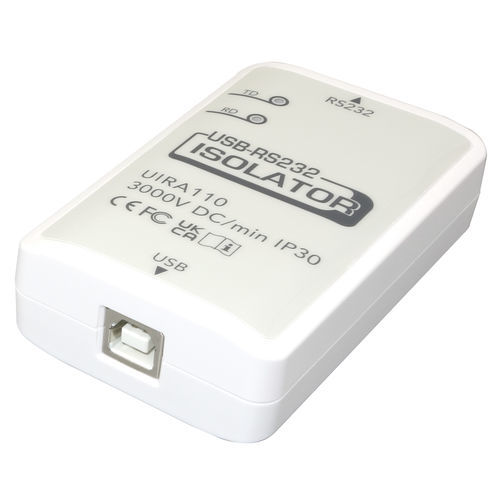

The USB to RS232 isolators are with two types. One is a box type and the other is a box type with SR cable. The connection for the isolator is a USB2.0 port to a PC end and an RS-232 port to a device end. Thc isolator gains galvanic isolations from voltage spikes and ground loops. It is compatible with various operating systems, being quitc applicable to be used in the industry environment.
Protection Rating
IP40
Data Connections
USB 11 Low-Speed (1.5Mbps), USB 20 Full-Speed (12Mbps)
High Speed Baud Rate up to 921.6Kbps
Dielectric Strength
3kV DC Imin.
Insulation
Reinforced
Connections
Host Connector: USB B Type
Device Connector: DB9M
Compliance
FCC part18; ICES -001
CE: EN55032/EN55035
LVD (IEC/EN62368-1)
RoHS
Dimensions (mm) (L)x(W)x(H)
89x55x24
