USB isolator UIBA100

galvanicvoltageDC

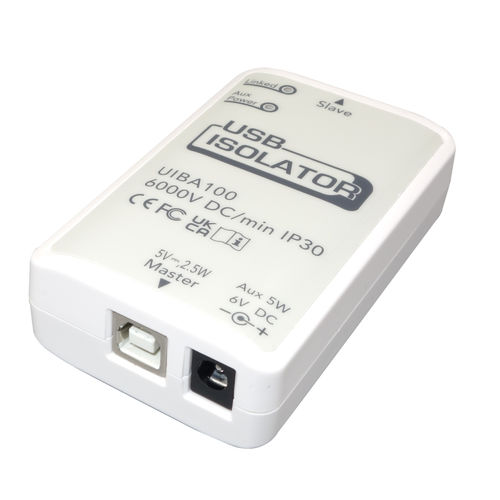

EmCom launches a series of USB isolators, including medical and industrial ones. The medical USB isolators P/N UIBA000 are certified by IEC/EN60601-1(Edition 3.2) with 2MOPP to keep patients safe. The products gain galvanic isolation from voltage spikes and ground loops for electrically safe. For the industrial USB isolators, they are two types with the different dielectric strength. P/N UIBA100 is a 6kV DC type, and P/N UIBA110 is a 3kV DC type. Both are reinforced insulation design, with gaining the same galvanic isolation from voltage spikes and ground loops, for electrically safe. Our isolators, for medical and industrial environments, work out of the box directly, no drivers needed. And both of them at the USB buses support up to full speed 12Mbps. An optional power adapter is recommended for an end device which needs to draw more than 250mA.
