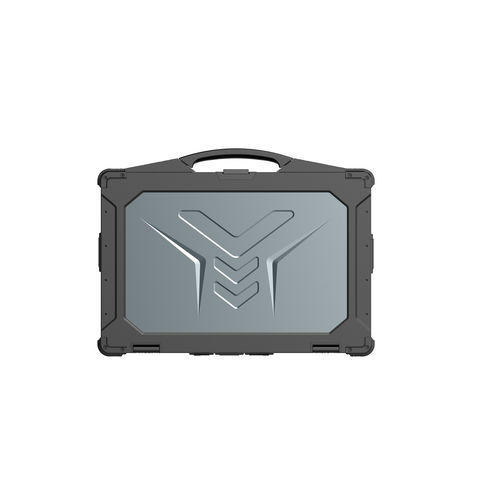

AMD Ryzen™ AI Max+ 395 laptop computer EM-A15

AMD RadeonWindows 11Windows 11 IoT Enterprise

Overview
Built for extreme AI workloads, the Emdoor EM-A15 is a field-ready rugged AI workstation combining desktop-class compute with certified protection. It pairs AMD Ryzen AI Max+ 395 compute and Radeon graphics with a bright 15.6" FHD display to support mission-critical inference and edge AI applications.

Key highlights

• CPU: AMD Ryzen AI Max+ 395 (64MB cache, up to 5.1 GHz, 16 cores, 32 threads)
• GPU: Radeon 8060S
• OS: Windows 11 Pro / Home / IoT
• Display: 15.6" FHD (1920x1080), 1000 nits
• AI performance: 126 TOPS (Ryzen AI Max+ 395)

Main features

• Rugged design: IP65 and MIL-STD-810H certified, 1.22 m drop resistance
• Memory: 64GB LPDDR5 standard, optional 128GB LPDDR5
• Storage: 512GB NVMe PCIe SSD standard, optional 1TB PCIe SSD
• Battery: Dual Li‑Ion (11.61V, 6355mAh ×2) — approx. 17.1 h endurance
• Camera: Front 5.0 MP
• Wireless: Wi‑Fi 7 (802.11a/b/g/n/ac/ax/be), Bluetooth 5.4
• Cellular & GNSS: Optional 4G LTE and optional GPS/GLONASS

I/O and expandability

• I/O Interface:
  • USB 3.2 Gen 1 (Type-A) ×2
  • USB4 (Type-C) ×1
  • OCULink ×1
  • HDMI 2.1 Type-A ×1
  • Fan ×2
  • 5.5 mm DC in jack ×1
  • 10/100/1000M Ethernet (RJ45) ×2
  • Serial port (RS232: D-sub, 9-pin) ×1
  • SIM card ×1
  • 3.5 mm audio jack ×1
  • TF card slot ×1
• Power adapter: PD adapter 100–240V, 50Hz–60Hz, 230W (19.5V/11.8A)

Data collection & security

• NFC: No
• 1D scanner: No
• 2D scanner: No
• Fingerprint: Yes

Environmental & reliability

• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• Humidity: 95% non-condensing
• Protection level: IP65 certified; MIL-STD-810H certified
• Drop resistance: 1.22 m

Technical specifications

• Model: EM-A15
• Dimensions: 397 mm (L) × 300 mm (W) × 41 mm (H)
• Weight: 3.56 kg
• Color: Black
• Screen resolution: 1920 × 1080 (FHD)
• Screen brightness: 1000 nits
• Front camera: 5.0 MP
• CPU: AMD Ryzen AI Max+ 395 (up to 5.1 GHz, 16 cores, 32 threads, 64MB cache)
• GPU: Radeon 8060S
• OS options: Windows 11 Pro / Home / IoT
• Memory options: 64GB LPDDR5 (standard), 128GB LPDDR5 (optional)
• Storage options: 512GB NVMe PCIe SSD (standard), 1TB PCIe SSD (optional)
• Battery: Li‑Ion 11.61V, 6355mAh ×2 (~17.1 h)
• Wi‑Fi: Wi‑Fi 7 (802.11a/b/g/n/ac/ax/be)
• Bluetooth: Bluetooth® 5.4
• Cellular: Optional 4G LTE
• GNSS: Optional GPS/GLONASS
• I/O: USB 3.2 Gen1 ×2, USB4 Type‑C ×1, OCULink ×1, HDMI 2.1 ×1, dual RJ45, RS232 D-sub 9-pin ×1, SIM ×1, TF card ×1, 3.5 mm audio ×1, DC in 5.5 mm
• Power adapter: PD 100–240V, 230W (19.5V/11.8A)
• Protection & standards: IP65, MIL‑STD‑810H
• Drop resistance: 1.22 m
• Operating temp: -20°C ~ 60°C; Storage temp: -30°C ~ 70°C; Humidity: 95% Non‑Condensing
