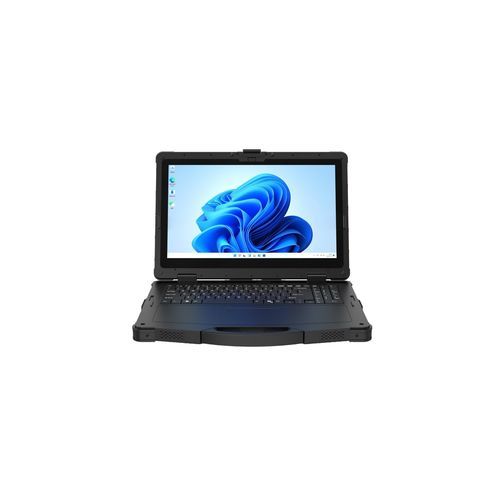

AMD laptop computer EM-A14

AMD RadeonWindows 10Windows 11

Overview
The Emdoor EM-A14 is a 14" rugged AI PC engineered for industrial and field applications. It combines an integrated AI engine, enterprise connectivity and certified ruggedization to support inspection, diagnostics and mobile compute tasks in demanding environments.

Key Highlights

• 66 TOPS total AI performance (NPU + CPU + GPU)
• AMD Ryzen AI 7 350 (Zen 5) processor
• 14" FHD IPS display, 1000 nits, anti-glare
• Rugged certifications: IP65 and MIL-STD-810H
• Hot‑swappable dual batteries for continuous operation

Performance & AI
The AMD Ryzen AI 7 350 delivers integrated AI acceleration across NPU, GPU and CPU cores. Total system AI performance reaches 66 TOPS with a dedicated NPU capable of 50 TOPS for real-time inference tasks such as automated visual inspection and medical imaging workflows.

Processor Details

• 8 cores / 16 threads
• Zen 5 architecture
• Max boost up to 5.0 GHz
• 4 nm process
• Platform TDP up to 54W (cooling rated to support higher sustained loads)

Graphics
Integrated Radeon 860M providing GPU acceleration suitable for 3D rendering, CAD/CAE previews and visualization in industrial applications. Performance is comparable to targeted workstation-class workloads.

Memory & Storage
Up to 64 GB LPDDR5x (up to 5600 MT/s). 1 TB NVMe SSD standard, dual M.2 (PCIe 4.0) slots for expansion and high-throughput storage requirements.

Display
14" FHD (1920x1080) IPS panel with 1000 nits peak brightness and anti-glare coating for outdoor readability and direct-sunlight use.

Thermal & Cooling
Dual fans and dual heat pipes with high-speed fans (up to 3400 RPM) and optimized airflow to support stable operation under high TDP conditions.

Battery & Power
Dual 6355 mAh hot‑swappable batteries (total 12,710 mAh) enabling uninterrupted field operation. Typical combined runtime around 17 hours with fast charging (~3.5 hours full charge).

Input & Security
Enlarged HID touchpad with 4-finger gesture support, tactile L/R buttons and integrated fingerprint sensor for secure authentication.

Connectivity & I/O
OCuLink for external GPU expansion; USB4 (Type-C) up to 40 Gbps; dual 1000M RJ45; HDMI 2.1; COM/RS232; TF/SIM slot. Wireless: Wi‑Fi 6, Bluetooth 5.2; optional 4G LTE.

Ruggedness & Environmental
IP65 and MIL-STD-810H certified. Operating range -20°C to 60°C. Drop resistance up to 1.22 m.

Operating System
Windows 11 Pro, configured for field and industrial deployment.

Technical specifications

• Model: EM-A14
• Brand: Emdoor
• Processor: AMD Ryzen AI 7 350 (Zen 5)
• CPU cores / threads: 8 Cores / 16 Threads
• Max CPU boost: 5.0 GHz
• Process tech: 4 nm
• Max TDP: 54W (platform cooling rated to support up to 100W)
• Total AI Power: 66 TOPS (NPU + CPU + GPU)
• Dedicated NPU: 50 TOPS
• Memory: Up to 64GB LPDDR5x (up to 5600 MT/s)
• Storage: 1TB NVMe SSD; Dual M.2 (PCIe 4.0) slots
• Graphics: AMD Radeon 860M
• Display: 14" FHD IPS (1920x1080), 1000 nits, anti-glare
• Battery: Dual 6355mAh (hot-swappable), total 12,710mAh; ~17 hours
• Charging: Fast charge (~3.5 hours full)
• Cooling: Dual fans, dual heat pipes, up to 3400 RPM fans
• I/O: OCuLink, USB4 (Type-C), Dual 1000M RJ45, HDMI 2.1, COM/RS232, TF / SIM slot
• Wireless: Wi‑Fi 6, Bluetooth 5.2, optional 4G LTE
• Security: Fingerprint sensor
• OS: Windows 11 Pro
• Certifications: IP65, MIL-STD-810H
• Environmental: Operating -20°C to 60°C; Drop resistance 1.22 m
