Tablet PC EM-Q225MP

Android 1412.2"Qualcomm® QCM6490

Overview The EM-Q225MP is a rugged Android 14 tablet designed for field engineers, inspectors and industrial operators. It pairs a Qualcomm® QCM6490 octa-core processor with 8GB LPDDR4x and 128GB UFS, a 12.2" FHD 700-nit display with 10-point capacitive touch (supports GP930 active pen), and a removable 12,600mAh battery for extended on-site operation. IP65 and MIL‑STD‑810H certification, broad I/O and integrated scanning/NFC support secure data capture and connectivity in demanding environments.

Key features

• CPU: Qualcomm® QCM6490 (6nm octa-core)
• GPU: Qualcomm® Adreno™ 643L
• Operating system: Android 14
• Display: 12.2" FHD (1920 x 1200), 700 nits
• Touch: 10-point capacitive, supports GP930 active pen
• Battery: Removable Li‑ion 3.7V, 12,600mAh (typ.), listed endurance ~7.9h
• Wireless: Wi‑Fi 6E (802.11ax), Bluetooth 5.2; cellular listed as 4G in spec block (marketing references 5G)
• GNSS: GPS/GLONASS/Beidou/Galileo/QZSS
• Ruggedization: IP65, MIL‑STD‑810H, 1.22 m drop resistance
• Advanced data capture: HF‑RFID (NFC), 1D & 2D barcode scanning
• I/O: microSD, SIM, USB-A 3.0, USB-A 2.0, USB-C 2.0, HDMI 1.4 mini, 3.5mm audio, DC-in, Gigabit Ethernet (RJ45), 12-pin pogo (charge & USB), RS232/RS485 D-sub

Product images & media

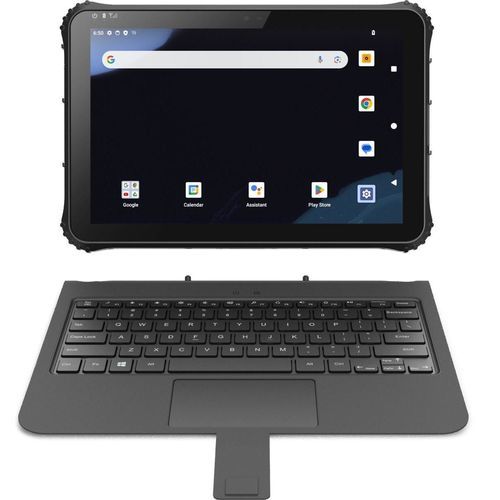

• Multiple product images available showing tablet front, back and keyboard accessory. Gallery files labeled EM-Q225MP (filenames include I22-...).

Technical specifications

• Model name: EM-Q225MP
• Dimensions: 319.6 mm (L) × 216 mm (W) × 24.3 mm (H)
• Weight: 1500 g
• Color: Black
• Display: 12.2" FHD (1920 x 1200), 700 nits
• Touchscreen: 10-point capacitive, supports GP930 active pen
• Cameras: Front 5.0MP; Rear 13.0MP
• CPU: Qualcomm® QCM6490
• GPU: Qualcomm® Adreno™ 643L
• Memory: 8GB LPDDR4x
• Storage: 128GB UFS
• Battery: Li‑ion 3.7V, 12,600mAh, rated ~7.9h
• Power adapter: AC 100–240V, 20W (5V/4A)
• I/O: Micro SD ×1; SIM ×1; USB 3.0 (Type‑A) ×1; USB 2.0 (Type‑A) ×2; USB 2.0 (Type‑C) ×1; 3.5mm jack ×1; HDMI 1.4 mini ×1; DC in ×1; 10/100/1000M Ethernet (RJ45) ×1; 12‑pin Pogo ×1 (charge & USB); Serial (RS232 D‑sub 9‑pin) ×1; Serial (RS485 D‑sub 9‑pin) ×1
• Wi‑Fi: Wi‑Fi 6E (802.11ax)
• Bluetooth: 5.2
• Cellular: spec block lists 4G (marketing references 5G)
• GNSS: GPS/GLONASS/Beidou/Galileo/QZSS
• NFC: HF‑RFID (NFC) reader
• Barcode scanning: 1D & 2D supported
• Fingerprint: None
• Operating temperature: -20℃ ~ 60℃
• Storage temperature: -30℃ ~ 70℃
• Humidity: 95% non‑condensing
• Protection: IP65; MIL‑STD‑810H
• Drop resistance: 1.22 m
