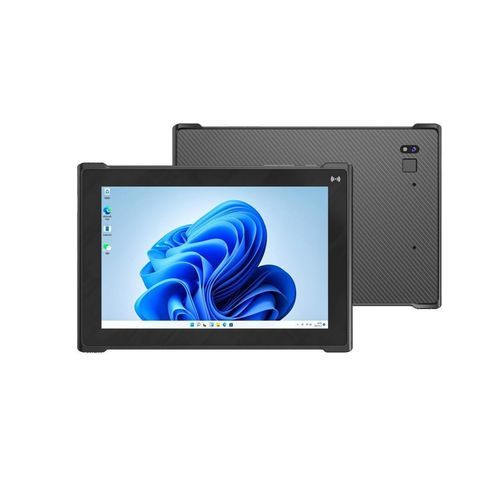

Windows tablet EM-IS19J

Windows 11Windows 11 ProWindows 11 IoT Enterprise

Overview
EM-IS19J is a slim, rugged Windows tablet engineered for mobile business applications including retail, hospitality, field service and logistics. Powered by Intel N5100 and Windows 11, it integrates a 10.1-inch FHD 700-nit touchscreen, IP67 sealing, 1.8 m drop resistance and a modular data-capture suite for barcode, NFC and biometric workflows.

Key features

• Intel N5100 CPU with Windows 11 (Home standard; optional Pro / IoT)
• 10.1-inch FHD (1920 x 1200) 700-nit display, 16:10 aspect ratio
• Slim 12.7 mm body, lightweight 930 g for mobile use
• Rugged rating: IP67, MIL-STD-810H, 1.8 m (6 ft) drop resistance
• Integrated data capture: front NFC, top-mounted 1D/2D scanner, rear fingerprint scanner
• Dual full-function USB-C ports, HDMI support via USB-C, pogo pin for docking
• Active stylus support (Microsoft MPP 2.0, 4096 pressure levels)

Data capture & expansion

• Front HF-RFID (NFC) reader (Type A/B, Mifare)
• Top-mounted professional 1D/2D barcode scan engine for rapid reading
• Rear fingerprint sensor for secure login and multi-user access
• Dual USB-C (full-function) with audio/HDMI transmission support
• Pogo pin interface for docking stations, charging bases and keyboard accessories

Wireless & positioning

• Wi‑Fi: Intel Wi‑Fi 5 (802.11ac)
• Bluetooth 5.2
• Cellular: 4G LTE standard; optional 5G RedCap
• GNSS: GPS, Glonass

Imaging and input

• Front camera: 5.0 MP fixed-focus
• Rear camera: 8.0 MP AF with flashlight
• 10-point capacitive multi-touch; supports MPP702 active pen (MPP 2.0, 4096 levels)

Battery & power

• Li-ion battery 7.74 V, 4800 mAh (≈7.4 hours typical)
• Fast charging: 33 W PD; AC adapter 100–240 V, 50/60 Hz

Rugged reliability

• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• Humidity: 95% non-condensing
• ESD: ±8 kV contact / ±15 kV air
• Drop resistance: 1.8 m / 6 ft (26 drops: sides, edges, corners)

Included I/O & storage

• I/O: USB 3.2 Type-C ×2; 12-pin Pogo pin ×1; Nano SIM & Micro SD support
• Memory: 8 GB LPDDR4x onboard
• Storage: 128 GB eMMC standard; optional 256 GB eMMC
• GPU: Intel HD Graphics Gen 11 LP
• OS: Windows 11 Home standard; optional Windows 11 Pro / Windows 11 IoT

Applications & accessories
Designed for retail checkout, table-side ordering, membership ID, inventory control, field inspection and warehouse workflows. Optional accessories: card payment module, leather keyboard, docking charger, stands, rotatable hand strap, single-hand strap and active stylus.

Technical specifications

• Model: EM-IS19J
• Brand: Emdoor
• Dimensions: 260 mm × 174.7 mm × 12.7 mm
• Weight: 930 g
• Color: Black
• Display: 10.1-inch FHD (1920 × 1200), 700 nits, 16:10
• Touch: 10-point capacitive, supports MPP702 active pen (MPP 2.0)
• CPU: Intel N5100 (up to 2.8 GHz, 4 cores)
• GPU: Intel HD Graphics Gen 11 LP
• Memory: 8 GB LPDDR4x onboard
• Storage: 128 GB eMMC (optional 256 GB eMMC)
• Battery: Li-ion 7.74 V, 4800 mAh (≈7.4 hours)
• Charging: 33 W PD; AC adapter 100–240 V, 50/60 Hz
• Cameras: 5 MP front; 8 MP AF rear with flashlight
• I/O: USB 3.2 Type-C ×2; 12-pin Pogo pin ×1; Nano SIM & Micro SD slot
• Wireless: Intel Wi‑Fi 5; Bluetooth 5.2; 4G LTE (optional 5G RedCap)
• GNSS: GPS, Glonass
• Data capture: Front NFC (HF-RFID), top-mounted 1D/2D reader, rear fingerprint scanner
• Ruggedness: IP67; MIL-STD-810H; ESD ±8 kV contact / ±15 kV air
• Drop resistance: 1.8 m / 6 ft (26 drops)
• Operating temperature: -20°C to 60°C
• Storage temperature: -30°C to 70°C
• Humidity: 95% non-condensing
