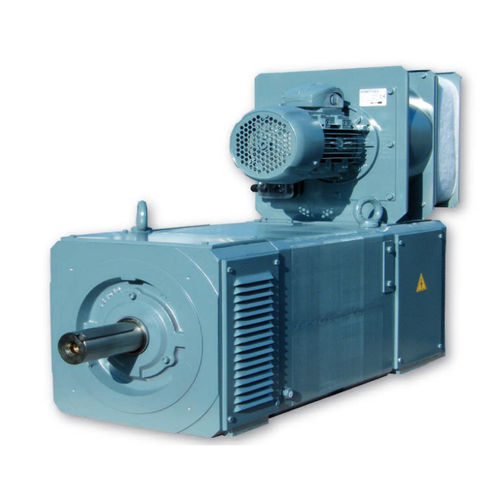

DC motor GH series
brushedlow-noisemodular

DC motor
DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
brushed
Other characteristics
low-noise, modular, compact
Torque

Max.: 15,527 Nm (11,452.1275 ft.lb)

Min.: 14.44 Nm (10.6504 ft.lb)

Power

Max.: 1,220 kW (1,658.738 hp)

Min.: 2.3 kW (3.127 hp)

Rotational speed

750 rpm, 1,500 rpm (4,712.39 rad.min-1)

Description

Nidec ASI DC motors are designed with a highly effective low-noise cooling system that allows high power – high torqueperformance from compact machines. High torque performance is possible thanks to the sized Shaft Ends, constructed fromcertified high quality steel. The brush commutator system guarantees excellent commutation over a wide speed range.The machines are insulated using a VPI process. Our insulation system is one of the best on the market. Due to its outstandingdielectric and mechanical properties this class H insulation system (with class F temperature rise) is qualified for use in aggressiveenvironments and is particularly suitable for ropeway applications, ensuring a high level of reliability over the entire life cycle.Based on a modular design, our DC motors offer a vastselection of mounting arrangements, cooling systems, typeof protection and accessories allowing maximum flexibilityin meeting customers’ application needs. StandardsNidec ASI DC motors are manufactured in compliance withinternational standards IEC 34-1 and with harmonizedstandards of CENELEC for European Countries EN 60034and HD 53. On request the motors can be suppliedelectrically conform to NEMA (MG-1, etc..) or other specificrecommendations.Our DC motors are manufactured in accordance withDirective 2006/95/CE (LVD). The "CE" is affixed to eachmotor to certify compliance with the above directive.
