- Stainless steel indexing plunger
- Emile Maurin Eléments Standard Mécaniques

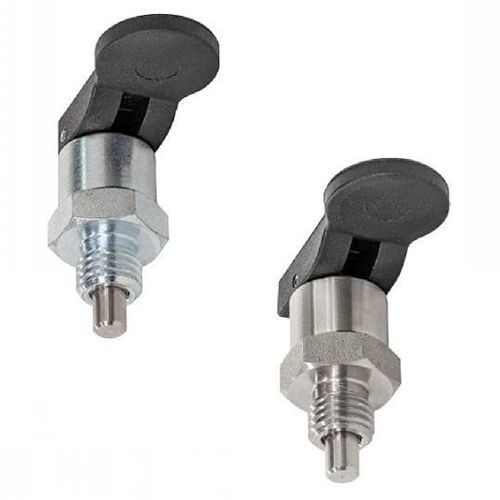

Stainless steel indexing plunger 32-260 seriestechnopolymerzinc-plated steellockable
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel, technopolymer, zinc-plated steel
- Options
- lockable, centering, threaded
Description
Definition
The indexing plunger, also called centering pin, is a positioning element used to lock, secure or locate a device. It can be used to stop translational or rotational movement.
Material
Versions
Dimensional range
- Thread (d1) available: standard metric pitch M10 to M16 or fine pitch M10x1 to M16x1.5.
- Centering pin (d2) tolerance h9: diameter 4 to 10 mm.
- Pin length (l1): 5 to 10 mm.
Usage
Ordering example / Reference
ORDER EXAMPLE: Reference-d2 (h9)
32-2601-10-4
Remarks
Product complies with the standards cited on the technical data sheet. 3D CAD files and application videos available for this model.
Characteristics / technical specifications
The indexing plunger, also called centering pin, is a positioning element used to lock, secure or locate a device. It can be used to stop translational or rotational movement.
Material
- Body in zinc-plated blue passivated steel or stainless steel (AFNOR Z 8 CNF 18-09, Werk 1.4305, AISI 303).
- Centering pin in stainless steel (AFNOR Z 8 CNF 18-09, Werk 1.4305, AISI 303).
- Spring in stainless steel (AISI 302).
- Lever in black polyphthalamide reinforced with glass fiber.
Versions
- Steel body, polyphthalamide lever, with or without locking device.
- Stainless steel body, polyphthalamide lever, with or without locking device.
- Available with standard metric thread or fine metric thread.
Dimensional range
- Thread (d1) available: standard metric pitch M10 to M16 or fine pitch M10x1 to M16x1.5.
- Centering pin (d2) tolerance h9: diameter 4 to 10 mm.
- Pin length (l1): 5 to 10 mm.
Usage
- The pin is retracted by pressing and holding the lever down.
- A spring returns the lever to its initial position when released and pushes the pin back to the extended position.
- The version with locking device holds the pin in the retracted position when the lever is raised to vertical.
Ordering example / Reference
ORDER EXAMPLE: Reference-d2 (h9)
32-2601-10-4
Remarks
Product complies with the standards cited on the technical data sheet. 3D CAD files and application videos available for this model.
Characteristics / technical specifications
- Series / model: 32-260
- Body: Zinc-plated blue passivated steel or Stainless steel (AISI 303)
- Centering pin: Stainless steel (AISI 303), d2 = 4 to 10 mm (tol. h9)
- Spring: Stainless steel (AISI 302)
- Lever: Black polyphthalamide reinforced with glass fiber
- Available threads: M10, M12, M16 (standard) and M10x1, M12x1.5, M16x1.5 (fine)
- Pin length (l1): 5 to 10 mm
- Locking function: versions with or without locking device
- Standard / correspondence: corresponds to GN 823 (see datasheet)
- Compatible accessories and supports available (bushings, spacers, nuts)
