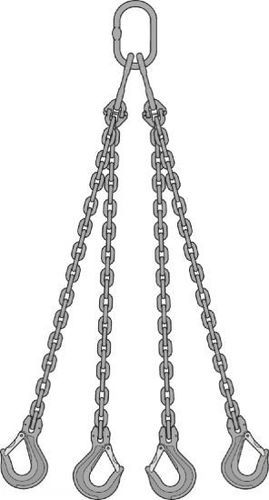

4-point sling 18-624 serieschainstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- 4-point, chain
- Material
- stainless steel
- Load capacity
Max.: 8,900 kg
(19,621.1 lb)Min.: 1,890 kg
(4,166.7 lb)
Description
Overview
Use
On request
Order example
EXAMPLE ORDER:
Reference-l1
18-6241-6-1000
Available documents
Technical characteristics / specifications
- 4-leg lifting sling in stainless steel Grade 60
- Material: Stainless steel Grade 60
- Breaking load is calculated by multiplying the WLL (Working Load Limit) by a safety factor of 4.
Use
- Supplied assembled with head link, connecting link, chain, safety-latch lifting hook and reduction hook
- Refer to the available technical documents for slinging basics
On request
- Non-standard effective length: specify required l1
Order example
EXAMPLE ORDER:
Reference-l1
18-6241-6-1000
Available documents
- Slinging basics - Data sheet
- Slinging basics - Data sheet (family)
- Slinger's memo
- Lifting leaflet
Technical characteristics / specifications
- Model / series: 18-624
- Type: 4-leg sling
- Material: Stainless steel Grade 60
- Supplied components: head link, connecting link, chain, safety-latch lifting hook, reduction hook
- WLL by variant: 1.89 t (chain Ø 6 mm), 3.35 t (Ø 8 mm), 5.25 t (Ø 10 mm), 8.9 t (Ø 13 mm)
- Standard lengths l1 available: 1000 mm, 2000 mm, 3000 mm (other lengths on request)
- Breaking load = WLL × safety factor 4
- Example variants: WLL (t) / Chain Ø (mm) / l1 (mm): 1.89 / 6 / 1000,2000,3000; 3.35 / 8 / 1000,2000,3000; 5.25 / 10 / 1000,2000,3000; 8.9 / 13 / 1000,2000,3000
- Indicative lead time: 6 to 10 days (subject to supplier availability)
