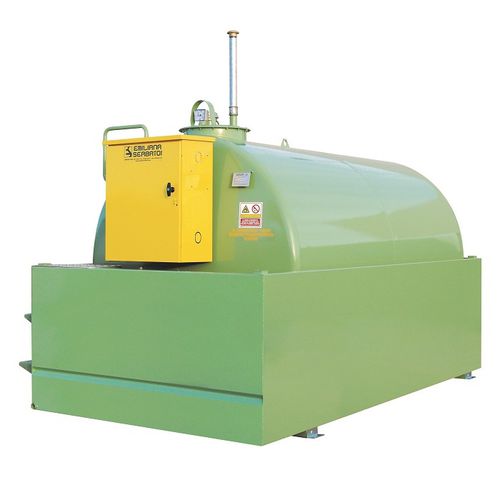

Cylindrical vessel TF series

for dieselcarbon steelstorage

Tanks are of horizontal or verticale cylindrical type, manufactured by using shell plates and dished ends, made of carbon steel quality S235JR according to UNI EN 10025, watertight electro-welded (gas metal arc welding process), provided with anti-roll supports, primed with a rust preventing coating and finished with a layer of green paint. Tanks are delivered pressure-tested and ready-to-use. Tank Fuels are equipped with a containmet basin designed to hold 110% of the tank’s volume. It is provided with 4 anchoring clamps, grounding connection point, drain plug for routine maintenance and cleaning and 4 housings suitable for fixing the uprights of the roof system. Tanks are realized in compliance with D. M. 22/11/2017 of Italian Ministry of Interior. Tank Fuels are also equipped with a fuel transfer unit which can consist of a pump unit in a metal cabinet or of a fuel dispenser. Available Capacities: 490, 1.000, 1.300, 2.400, 3.000, 5.000, 6.000, 7.000 and 9.000 L. Main features: • - Ø 400 mm manhole complete with oil gasket and tight bolted cover. • - 3” filling plug with lockable quick cap. • - Mechanical overfill prevention valve calibrated to interrupt the fuel flow at 90% of the tank’s volume. • - Vent device with flame arrestor mesh h 240 cm from ground . • - Mechanical float operated tank contents gauge with planetary gear, adjustable scale in cm. • - 4 anti-roll support legs. • - Tank drainage point provided with a safety cap for routine maintenance and cleaning. • - Suction point equipped with check valve and ball valve. • - Equipotential grounding point. • - From 5.000 L model, basins are equipped with nonslip platforms and handrail.
