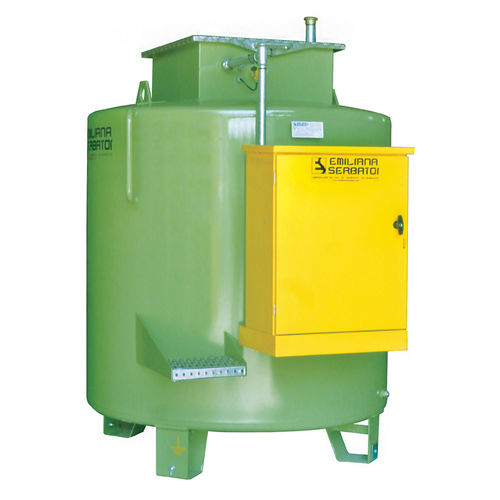

Cylindrical vessel TF VDP series

double-walledfor dieselcarbon steel

Double wall vertical cylindrical tanks manufactured by using shell plates and dished ends made of carbon steel quality S235JR according to UNI EN 10025. Tanks are equipped with fuel dispensing cabinets or fuel dispensers. Available Nominal Capacities from 1300 to 9000 litres (2400, 3000, 5000, 7000 litri). Double wall vertical tank is equipped with: • - Ø 400 mm manhole complete with oil gasket and tight bolted cover. • - Upper anti-spillage pit with lockable lid. • - 3” lockable filling quick cap. • - Mechanical overfill prevention valve calibrated to interrupt the fuel flow at 90% of the tank’s geometric capacity. • - Vent device with flame arrestor mesh. • - Mechanical float operated tank contents gauge. • - Anti-roll support legs. • - Transparent cupola cap for interstitial space monitoring. • - External suction point equipped with check valve, strainer and ball valve. • - Containment basin placed under the fuel dispensing cabinet designed to hold eventual leakages from the suction pipe. • - Equipotential grounding point. • - Minimum level pump shut-off switch.
