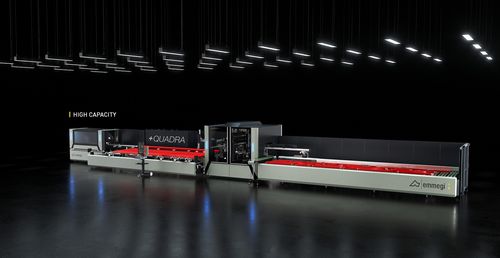

20-axis CNC machining center + QUADRA

verticalfor aluminummilling

Machining centre with up to 20 CNC axes, designed to perform cutting, milling and drilling operations, including head and tail, on aluminum and light alloy profiles. + Quadra is a configurable line with modular solutions and custom packages that allow to satisfy the most common applica- tions in window and doors, architecture and industry sectors. The structure of the line includes an automatic feeding magazine from which the pro- file is picked up and transferred to the operating section. It contains the units for cutting and machining; then an extraction system deposits the finished pieces on an accumulation magazine. The three main modules include a number of variants that modify the vocation of the line in terms of flexibility, automation and productivity. A cabin encloses all the work units, ensuring a high standard of soundproofing and total operator protection. The equipment of the machining centre is completed by the ALM automatic labelling module with 2-axis positioner, to identify the machined pieces, and a tool integrity control system. Both optional devices, combined with capacious storage magazines and the reliability of Emmegi systems, allow the machine to be exploited over extended machining cycles in fully automatic mode. The core and value of the +QUADRA lies in its rotary base machining section, complete with 4 machining units for +Quadra L0 and 6, or 8 machining units for +Quadra L1 and +Quadra L2, that are controlled and can be interpolated on 4 axes: X, Y, Z, A (360° slewing around the axis of the bar).
