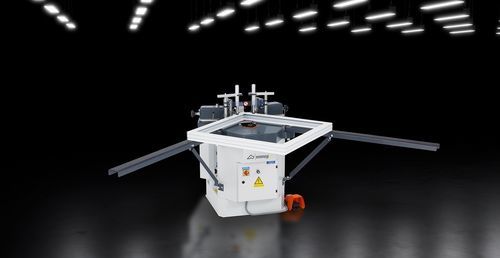

Aluminum profile crimping machine MACH1

aluminiumautomaticpneumatic

Product description
Pneumatic crimping machine for pressing large aluminium and PVC profiles and curtain walls. Model: MACH1. Designed for industrial workshops and production lines where reduced setup and precise, repeatable crimping are required.

CHARACTERISTICS

• Nominal pressure (bar): 7
• Standard power supply: 230V / 1~ / 50Hz
• Max crimping force (kN): 70 (approx. 7,000 kg)
• Max crimping height (mm): 140; 200

DIMENSION AND WEIGHT

• Packing dimensions LxHxD (mm): 1.100 x 950 x 1.230
• Weight (kg): 550

ACCESSORIES

• Standard bracing clamp 30 mm (Included)
• Aluminium bracing clamp 8 mm (Included)
• Self-regulating bracing clamp (Available)
• Support profiles: 2 (Included)
• Pair of standard knives, 3 mm (Included)
• Pair of standard knives, 4 mm (Included)
• Pair of standard knives, 7 mm (Included)
• Pair of standard knives, 5 mm (Available)
• Pair of standard knives, 8 mm (Available)
• Pair of standard knives, 10 mm (Available)
• Standard adjustable knives, 3 mm — 5 ÷ 15 mm chamber offset (Included)
• Standard adjustable knives, 3 mm — 15 ÷ 35 mm chamber offset (Available)
• Special knives for 5 ÷ 15 mm chamber offset (Available)
• Special knives for 15 ÷ 35 mm chamber offset (Available)

CHARACTERISTICS / TECHNICAL SPECIFICATIONS

• Nominal pressure: 7 bar
• Electrical supply: 230V / 1~ / 50Hz
• Max crimping force: 70 kN (7,000 kg)
• Max crimping height: 140 mm; 200 mm
• Packing dimensions (LxHxD): 1.100 x 950 x 1.230 mm
• Weight: 550 kg
• Included accessories: standard bracing clamp 30 mm; aluminium bracing clamp 8 mm; 2 support profiles; pairs of standard knives 3, 4, 7 mm; standard adjustable knives 3 mm (5 ÷ 15 mm)
