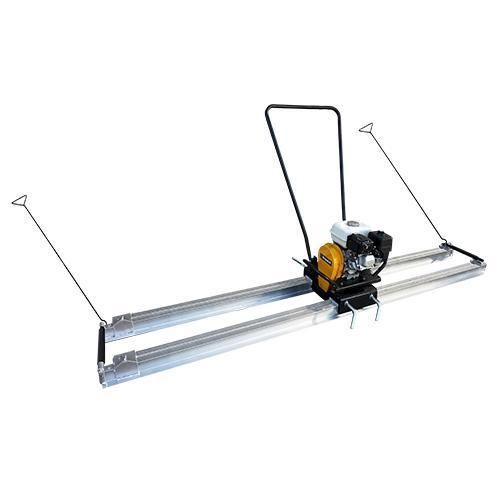

Double wet screed QGH PRO

gasoline-powered

Product overview

• Double-beam screed available in steel and aluminum profiles.
• Motor unit separate from the profile for easier transport and handling.
• 4-stroke petrol engine (HONDA GX160).

Applications
The QGH PRO is designed for vibrating concrete on large levelled surfaces where high compaction capacity and a flat finish are required. Its extendable profile and independent motor unit enable quick setup and precise adaptation to the working width, improving efficiency on demanding construction sites.

Benefits

• FAST ASSEMBLY: Separate motor unit and simple coupling for easy transport and quick installation.
• PERFORMANCE: Engineered for intensive use and adaptable to both large and small areas.
• POWER: Capable of vibrating concrete thicknesses up to 300 mm.

Available models / options

• Motor: QGH PRO Motor — double-beam vibrating motor screed (standard motor unit for the QGH PRO, HONDA GX160).
• Screed blade options: Double Extendable Steel Screed Blade and Double Extendable Aluminum Screed Blade, with extendable profiles to fit different working widths.
• Blade length options: 2.5–4.5 m and 3.5–6 m (depending on chosen blade model).

Technical specifications

• Centrifugal force: 3,000 N
• Frequency: 7,000 vib/min
• Fuel: Petrol (4-stroke engine)
• Engine: HONDA GX160
• Length (screed overall / available): 2.5–4.5 m and 3.5–6 m
• Screed blade lengths: Double Extendable Steel — 2.5–4.5 m or 3.5–6 m; Double Extendable Aluminum — 2.5–4.5 m
• Product identifier: QGH UK
• Weight: 55 kg
