Manual screeding system BG series

Product overview

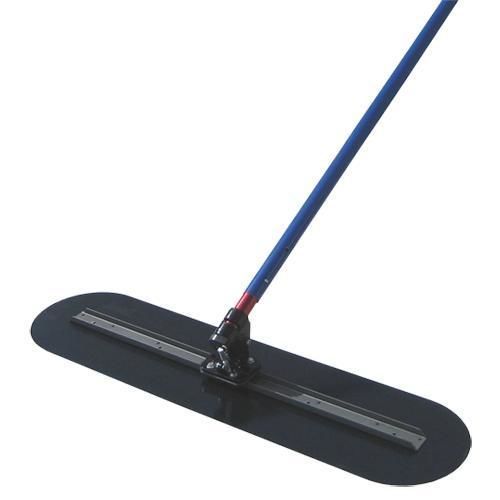

Hand oscillating trowel made from high-strength flexible steel with a movable angular grip and metal reinforcement. Sharp edge profile and oscillating system deliver a finish equivalent to a power trowel. Available in multiple sizes and finishes.

Main features

• High-strength flexible steel plate.
• High abrasion resistance.
• Rounded finish.
• Metal reinforcement for durability.
• Movable angular grip and interchangeable handle for different working positions and lengths.
• Sharp edge profile and oscillating system for uniform concrete finishing (power-trowel equivalent).

Models available

• BG 900 — 900 mm
• BG 1200 — 1200 mm
• BG 1800 — 1800 mm

Optional accessories

• Additional handle 1.8 m.
• Additional handle kit.
• Aluminum spreader.

Applications
Designed for smoothing and leveling fresh concrete surfaces on manual paving operations. The cutting profile, oscillating system and metal reinforcement ensure an optimal and uniform finish. Movable angular grip and interchangeable handles facilitate work in different positions and lengths, increasing on-site versatility.

Technical table
BG 900 | BG 1200 | BG 1800
LENGTH | 900 mm | 1200 mm | 1800 mm
WEIGHT | 6 kg | 7.4 kg | 9.8 kg
WIDTH | 315 mm | 315 mm | 315 mm

Technical specifications

• Series: BG series (BG 900, BG 1200, BG 1800).
• Blade material: high-strength flexible steel plate.
• Edge: sharp cutting profile for power-trowel equivalent finish.
• Reinforcement: metal reinforcement.
• Finish: rounded, high abrasion resistance.
• Handle: movable angular grip; interchangeable/additional handles available (1.8 m accessory).
• Available lengths: 900 mm, 1200 mm, 1800 mm.
• Weights: BG 900 — 6 kg; BG 1200 — 7.4 kg; BG 1800 — 9.8 kg.
• Working width: 315 mm for all models.
