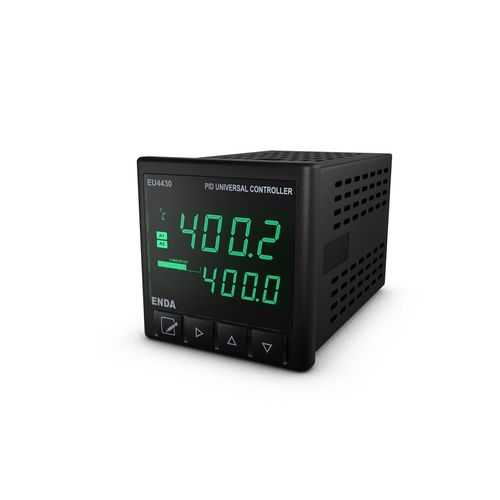

Programmable thermostat EU4430

IP65doubledigital

2x4 digits LCD display Double set point Selectable sensor type Selectable 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV and 0-50mV input PID control function with accurate self-tuning Digital inputs can be assigned to 3 different feature Function key can be assigned to 3 different feature Soft-Start function Selectable analog, SSR or relay control output Selectable 0-20mA and 4-20mA analog control output AL2 relay output can be programmable as second alarm or control output AL1 relay output can be programmable as control or AL1 output Selectable heating and cooling control Input offset feature In the case of probe failure periodical running or relay state can be selected Communication via RS-485 ModBus protocol CE marked according to European Norms Environmental Conditions Ambient/Storage Temperature - 0...50 ºC / -25...70 ºC Relative Humidity - 80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C Protection Degree - According to EN 60529 Front panel: IP65, Rear panel: IP20 Height - Max. 2000m Electrical Characteristics Supply - 90-250V AC 50/60Hz or 24V AC ±10% 50/60Hz Power Consumption - 5VA External Connections - Plug-in terminals Scale - Pt-100 resistance thermometer -199.9...600.0 °C / -200...600 °C °C Fe-Const (J) thermocouple -30.0....600.0 °C / -30....600 °C NiCr-Ni (K) thermocouple -30.0...999.9 °C / -30...1300 °C Cu-CuNi(T) thermocouple -30.0...400.0 °C / -30....400 °C Pt10Rh-Pt (S) thermocouple -40...1700 °C °C Pt13Rh-Pt(R) thermocouple -40...1700 °C 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV max. scale range 10000 (-1999...9999)
