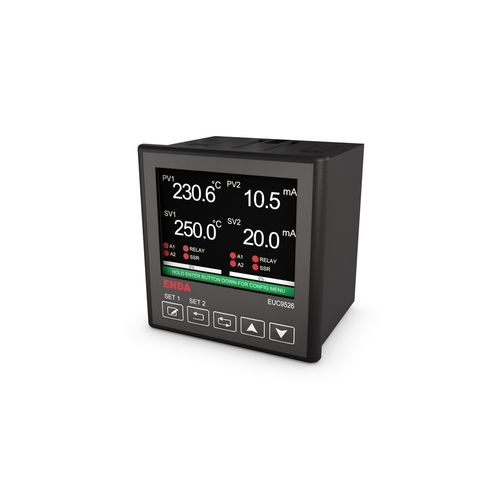

3,5 inches TFT, graphic and 5 digit display
2 sensor inputs selectable as TC, RTD, NTC, R, mA, V or mV
Input offset feature
32 point linearization for analog inputs
Selectable relay, SSR or analog outputs
Selectable input proportional transmitter output (mA or V)
50ms sampling time
PID control
PID selftune
PID auto-tune
Soft-Star feature
24V DC for sensor supply
Security levels for menu and configuration page
Programming with Key Pad and ModBus
RS-485 ModBus protocol communication feature (optional)
CE marked according to European Norms
Environmental Conditions
Ambient/Storage Temperature - 0...50 ºC / -25...70 ºC
Relative Humidity - 80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C
Protection Degree - According to EN 60529 Front panel: IP65, Rear panel: IP20
Height - Max. 2000m
Electrical Characteristics
Supply - 90-250V AC 50/60Hz
Power Consumption - 7VA
External Connections - Plug-in terminals
Scale - Pt-100 resistance thermometer -200.0...850.0 °C / -100.0...160.0 °C
Pt30Rh-Pt6Rh(B) thermocouple 200.0...1800.0 °C
NiCr-Con (E) thermocouple -100.0...900.0 °C
Fe-Con (J) thermocouple -100.0...900.0 °C
NiCr-Ni (K) thermocouple -100.0...1300.0 °C
Fe-Con (L) thermocouple -100.0...900.0 °C
NiCrSi-NiSi (N) thermocouple -200.0...1300.0 °C
Pt13Rh-Pt (R) thermocouple 0.0...1700.0 °C
Pt10Rh-Pt (S) thermocouple 0.0...1700.0 °C
Cu-Con (T) thermocouple -250.0...300.0 °C
Cu-Con (U) thermocouple -200.0...400.0 °C
NTC -60.0...150.0 °C
For 0/4 - 20mA, 0 - 150mV, 0/1 - 5V, 0 - 10V, 0 - 550ohm, 0 - 10kohm:
-32768...32767 (decimal point can be adjusted between 1. and 3. digits)
