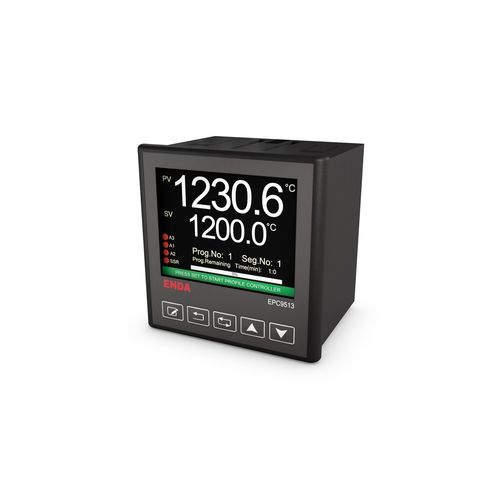

NTC thermostat EPC9513

IP65proportionaldigital

3,5 inches TFT , graphic and 5 digit display Selectable TC, RTD, NTC, R, mA, V or mV inputs Input offset feature 32 point linearization for analog inputs Selectable relay, SSR or analog outputs Selectable, input proportional transmitter output (mA or V) 50ms sampling time PID control PID selftune PID auto-tune Soft-Start feature 24Vdc for sensor supply 16 program and 8 step for profile control Selectable Single Setpoint Mode or Profile Control Mode Digital inputs for profile control In case of sensor failure manually, periodical or auto-periodical control can be selected Security levels for menu and configuration pages RS-485 ModBus protocol communication feature (optional) CE marked according to Europen Norms Environmental Conditions Ambient/Storage Temperature - 0...50 ºC / -25...70 ºC Relative Humidity - 80% relative humidity for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C Protection Degree - According to EN 60529 Front panel: IP65, Rear panel: IP20 Height - Max. 2000m Electrical Characteristics Supply - 90-250V AC, 50/60Hz Power Consumption - 7VA External Connections - Plug-in terminals Scale - Pt-100 resistance thermometer -200.0...850.0 °C / -100.0...160.0 °C Pt30Rh-Pt6Rh (B) thermocouple 200.0...1800.0 °C NiCr-Con (E) thermocouple -100.0...900.0 °C Fe-Con (J) thermocouple -100.0...900.0 °C NiCr-Ni (K) thermocouple -100.0...1300.0 °C Fe-Con (L) thermocouple -100.0...900.0 °C NiCrSi-NiSi (N) thermocouple -200.0...1300.0 °C Pt13Rh-Pt (R) thermocouple 0.0...1700.0 °C Pt10Rh-Pt (S) thermocouple 0.0...1700.0 °C Cu-Con (T) thermocouple -250.0...300.0 °C Cu-Con (U) thermocouple -200.0...400.0 °C NTC -60.0...150.0 °C
