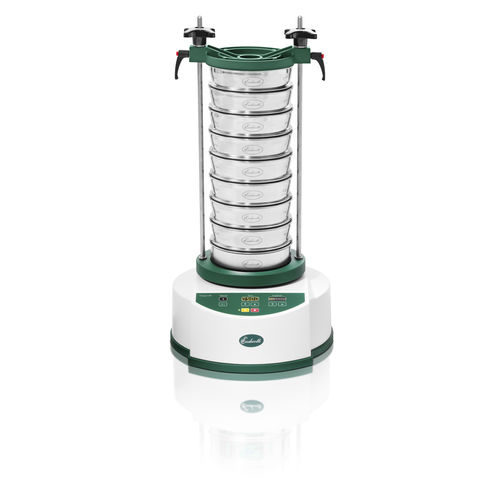

Wet sieving sieve shaker OCTAGON 200

for dry sievingcontrolcircular vibrating

The sieve shaker Octagon 200 is suitable for all sieving tasks in laboratories as well as onsite and provides optimum sieving action for fast and reproducible results. It is robust, compact and sufficiently lightweight to be portable. Its electromagnetic drive combined with a 3D sieving motion ensures excellent separation efficiency in a short amount of time. A digital display as well as a quick-release clamping system make operation very easy and straightforward. Product Advantages Easy-to-use sieve clamping system Accepts up to 8 full height 200 mm (8") diameter sieves Suitable for dry and wet sieving 10 amplitude settings & digital timer 3D sieving motion allows for high separation efficiency and non blinding sieving action Different voltages available No mechanical moving parts Compact & portable The perfect addition to our Sieve Shakers: SieveWare For even better evaluation results and effective handling. Automatic registration, evaluation and administration of measurement data Automatic detection and configuration of common analytical scales Comprehensive data export Technical Data Range - 20 µm to 125 mm Drive / sieving motion - electromagnetic 3D Max. batch / feed capacity - 3 kg Max. number of sieves - 8 full height / 16 half height (200 mm / 8" sieves) Amplitude - 0 - 3 mm* digital setting in 10 steps Speed - 3,000 min-1 at 50 Hz Time display - digital, 00:10-99:50 min Interval operation - yes (one mode) Suitable for dry sieving - yes Suitable for wet sieving - yes Serial interface - - Sieve diameter - 100 / 200 mm 8'' Max. height of sieve stack - up to 450 mm Clamping device - quick-release clamping system
