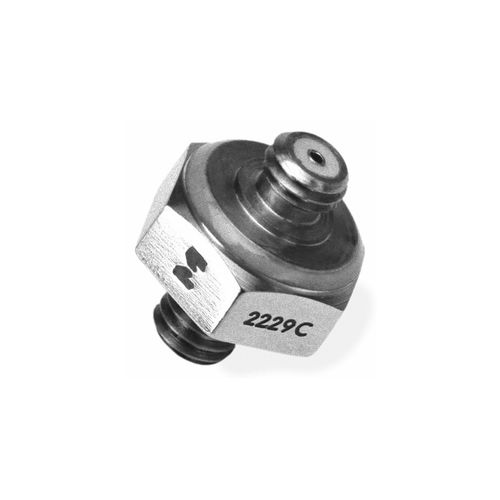

1-axis accelerometer 2229C

piezoelectriccrystalhigh-sensitivity

2.8 pC/g, -67°F to +350°F, isolated, 10-32 integral stud, top connector, 4.9 grams Key features • Ground isolated • Top connector • Stud mounted • Requires no external power • Vibration measurement on small structures The Endevco® model 2229C is a miniature, stud mounted piezoelectric accelerometer designed specifically for vibration measurement on small structures and objects. The transducer features a top-mounted 10-32 receptacle for installation convenience in tight space. Its light weight (4.9 gm) effectively minimizes mass loading. The accelerometer is a self-generating device that requires no external power source for operation. The model 2229C features Endevco’s Piezite® type P-8 crystal element, operating in annular shear mode. This device exhibits excellent output sensitivity stability over time. Signal ground is isolated from the mounting surface of the unit. A low-noise, flexible, coaxial cable is supplied for error-free operation.
