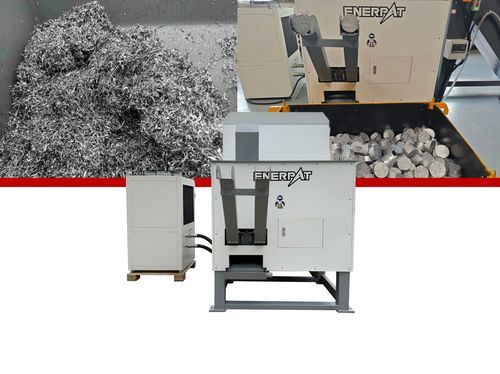

Metal chip briquette press BM-D

for cylindrical briquetteshydraulicautomatic

Brief overview
The ENERPAT BM-D double-outlet metal chip briquetting press compresses machining chips into solid briquettes using two synchronized pressing units. The machine separates cutting fluids, enables high oil recovery and produces uniform briquettes suitable for handling, stacking and recycling.

Detailed description
The BM-D series processes a wide range of metal chips — iron, aluminum, stainless steel, copper, titanium and alloys — converting wet or oily swarf into compact briquettes in a single stroke. The synchronized dual press heads reduce cycle time while maintaining consistent briquette size and density. High oil recovery (up to 95%) reduces waste and improves shop-floor conditions. Recycling value can increase (approx. 2000–3000 CNY/ton for iron chips).

Operating principle

• Conveying and feeding: chips are transferred to the briquetting inlet via a chip conveyor.
• Dual-screw feeding: horizontal and vertical screws ensure continuous, clog-free feeding into the compression chamber.
• Hydraulic compression: integrated hydraulic and electronic control systems compress the material into briquettes and eject them automatically.

Material testing
Typical test materials and demonstrations include:

• Alloy scraps
• Iron chips
• Aluminum chips
• Copper chips

Product specification (key models)
Models: BM-D1090 | BM-D1612 | BM-D2013
Press force (tons): 100 | 160 | 200
Briquette diameter (mm): 90 | 120 | 130
Motor power (kW): 11 | 18.5 | 22
System pressure (MPa): 25 | 25 | 25
Machine dimensions (mm): 2920×1380×2150 | 4250×1740×2730 | 4360×1870×2880
Machine weight (kg): 3000 | 4000 | 5000
Operation mode: Fully automatic

Main advantages

• Feeding system: vertical screw for forced, stable feeding; horizontal screw prevents bridging.
• Custom die design: high hardness and wear resistance for uniform, dense briquettes; adjustable briquette size.
• Cooling system: industrial cooling options for continuous operation, with temperature control or room-synchronized modes.
• Hydraulic system: quality cylinders and branded components (e.g. Rexroth, Parker) to minimize leaks and ensure reliability.
• PLC control: Siemens/Schneider PLC for real-time monitoring, programmable cycles and automatic alarms; displays operational parameters (time, current, temperature).

Technical specifications

• Series / model: BM-D
• Available models: BM-D1090, BM-D1612, BM-D2013
• Brand: ENERPAT
• Press type: double-outlet briquetting press for metal chips
• Materials: iron chips, aluminum chips, stainless steel chips, copper chips, titanium chips, alloys
• Press force: 100 / 160 / 200 tons (depending on model)
• Briquette diameter: 90 / 120 / 130 mm (depending on model)
• Motor power: 11 / 18.5 / 22 kW (depending on model)
• System pressure: 25 MPa
• Dimensions (mm): 2920×1380×2150 / 4250×1740×2730 / 4360×1870×2880
• Weight (kg): 3000 / 4000 / 5000
• Operation mode: Fully automatic
• Capabilities: oil recovery up to 95%, reduced contamination, increased recycling value
