Product Overview

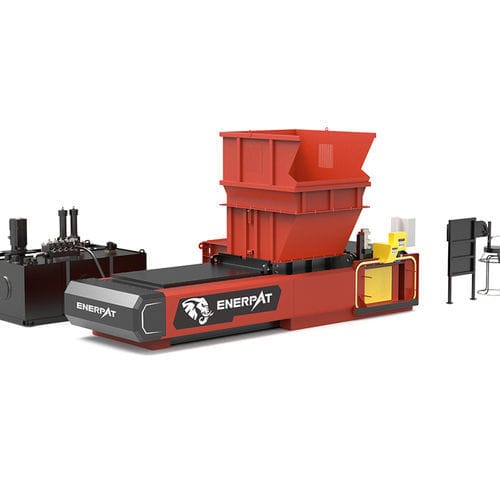

The ENERPAT Automatic Twin Ram Baler AMB-L is an industrial baling system designed for high-capacity waste and recyclable processing. With a 148-ton main ram and an 88-ton ejector cylinder, it compacts high-rebound materials into uniform, dense 750 kg bales. The machine features a fast cycle time (≤ 15 seconds) and a large 2000 × 1500 mm loading hopper to maximize throughput and reduce handling and storage costs.

Versatile Material Handling

• Handles municipal solid waste (MSW), industrial waste, paper, plastics, metals and other high-rebound recyclables

How it works
Material is loaded into the hopper and compressed by the main ram according to pre-set pressure and stroke counts. When the bale reaches the programmed length, the ejector ram pushes the bale out through the side exit. The automatic tying unit secures the bale (typical 6-wire tie). PLC control automates compression, tying and ejection for continuous operation and repeatable bale quality.

Main Features

• Effective compaction to minimize spring-back in elastic and high-rebound materials
• Dual-cylinder configuration: 148 t main ram and 88 t ejector ram for consistent, high-density bales
• User-friendly controls: 10-inch color HMI touchscreen with PLC and saved material recipes for one-touch changeover
• Automatic tying system: machine feeds and twists multiple wires automatically at preset bale lengths
• Durable, low-maintenance design: international-brand hydraulic and electrical components; wear zones protected with replaceable high-hardness liners
• Energy-efficient hydraulic design with heat control to sustain fast cycle times while optimizing power use
• Flexible integration: left or right side ejection options to match conveyors and facility layouts
• Warranty: 1-year machine warranty and 5-year cylinder warranty

Technical Specifications

• Model: AMB-L
• Hopper Size: 2000 × 1500 mm
• Bale Size: 1575 × 1180 × 780 mm
• Typical Bale Weight: 750 kg
• Cycle Time: ≤ 15 seconds
• Main Ram Force: 148 t
• Ejector Ram Force: 88 t
• Motor Power: 55 kW
• Total Weight: Approx. 30,000 kg
