Overview

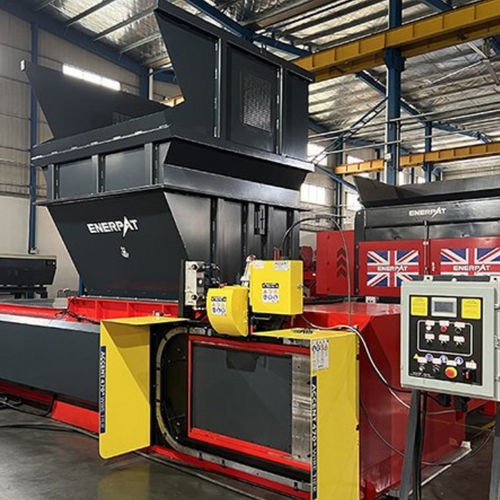

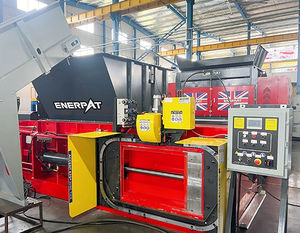

The ENERPAT Automatic Twin Ram Baler is a heavy-duty recycling baler designed for continuous automatic operation in material recovery facilities, recycling centres and waste transfer stations. The twin-ram hydraulic design produces dense, consistent bales across a wide range of recyclable materials while delivering robust performance for demanding, high-volume applications.

Highlights

• Continuous automatic operation
• Twin ram hydraulic compression
• Consistent high-density bale output
• Suitable for paper, cardboard, plastics and selected metal recyclables
• Designed for heavy-duty recycling applications

Key Features

• Continuous Automatic Operation — built for day-to-day reliability and minimal manual intervention
• Twin Ram Hydraulic Design — controlled compression for stable bale formation across diverse materials
• Heavy-Duty Construction — robust hydraulic system and durable structure for long-term industrial operation
• Intelligent One-Touch Control — 10-inch touchscreen with PLC, allowing quick parameter presets for different materials
• Efficient & Energy-Saving Hydraulic System — fast cycle times (≤15s empty) and reduced power consumption

Suitable Materials

• OCC Cardboard
• Mixed Paper
• Corrugated Cardboard
• PET Bottles
• HDPE Containers
• Soft Plastics
• Aluminium Cans
• Steel/Steel Cans
• Textile Waste
• MSW (Municipal Solid Waste)
• Copper Wires
• Scrap Iron

Technical Data
Specification | Value
Model | ENERPAT Twin Ram Baler
Hopper Size | 2000 × 1500 mm
Bale Opening Size | 1800 × 1500 mm
Bale Size | 1575 × 1180 × 780 mm
Cycle Time | ≤15 seconds (empty)
Hydraulic Pressure | 28 MPa
Motor Power | 55 kW
Machine Dimensions | 7500 × 4880 × 3250 mm
Main Ram Force | 148 tons
Pusher Ram Force | 88 tons
Door Lock Force | 43 tons

caractéristiques / spécifications techniques

• Model: ENERPAT Twin Ram Baler
• Hopper Size: 2000 × 1500 mm
• Bale Opening Size: 1800 × 1500 mm
• Bale Size (finished): 1575 × 1180 × 780 mm
• Cycle Time (empty): ≤15 seconds
• Hydraulic Pressure: 28 MPa
• Motor Power: 55 kW
• Machine Dimensions (L×W×H): 7500 × 4880 × 3250 mm
• Main Ram Force: 148 tons
• Pusher Ram Force: 88 tons
• Door Lock Force: 43 tons
