Overview

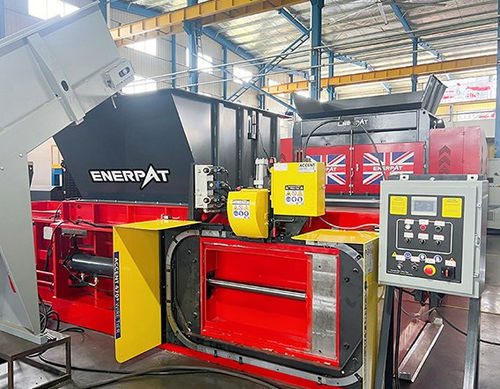

The ENERPAT Automatic Twin Ram Baler is a continuous-operation baler engineered for material recovery facilities, recycling centres and waste transfer stations. Its twin-ram hydraulic design delivers uniform, high-density bales for efficient handling, storage and transport.

Key selling points

• Continuous automatic operation for high-volume recycling
• Twin ram hydraulic compression for consistent bale formation
• High-density bales to optimise logistics and storage
• Compatible with paper, cardboard, plastics and selected metals
• Robust construction for demanding industrial environments
• 10-inch touchscreen PLC with one-touch preset parameter switching
• Energy-optimised hydraulic system for fast cycle times

Product highlights / Features

• Designed for continuous day-to-day operation in production and MRF environments
• Twin ram hydraulics provide controlled compression and stable bale geometry
• Heavy-duty hydraulic components and frame for prolonged service life
• Intuitive 10-inch touchscreen PLC for material-specific presets and one-touch control
• Efficient hydraulic circuit enabling cycle times ≤15 seconds (empty)

Suitable materials

• OCC (old corrugated containers)
• Mixed paper
• Corrugated cardboard
• PET bottles
• HDPE containers
• Soft plastics
• Aluminium cans
• Steel cans
• Textile waste
• MSW (municipal solid waste)
• Copper wires
• Scrap iron

Technical Data (Metric)

• Model: ENERPAT Twin Ram Baler
• Hopper Size: 2000 × 1500 mm
• Bale Opening Size: 1800 × 1500 mm
• Bale Size: 1575 × 1180 × 780 mm
• Cycle Time: ≤15 seconds (empty)
• Hydraulic Pressure: 28 MPa
• Motor Power: 55 kW
• Machine Dimensions: 7500 × 4880 × 3250 mm
• Main Ram Force: 148 tons
• Pusher Ram Force: 88 tons
• Door Lock Force: 43 tons
• Control: 10-inch touchscreen PLC, one-touch preset parameters

Technical Data (Imperial)

• Model: ENERPAT Twin Ram Baler
• Hopper Size: 78.74 × 59.06 in
• Bale Opening Size: 70.87 × 59.06 in
• Bale Size: 62.01 × 46.46 × 30.71 in
• Cycle Time: ≤15 seconds (empty)
• Hydraulic Pressure: 28 MPa
• Motor Power: 55 kW
• Machine Dimensions: 295.28 × 192.13 × 127.95 in
• Main Ram Force: 148 tons
• Pusher Ram Force: 88 tons
• Door Lock Force: 43 tons

Applications
Integration into recycling lines at material recovery facilities (MRFs), recycling centres and waste transfer stations. Suitable for high-volume processing of cardboard, paper, plastics and selected metal streams.

Technical specifications

• Continuous automatic baler with twin ram hydraulic compression
• Fast cycle performance: ≤15 s (empty)
• 10-inch touchscreen PLC for material presets and operator control
• Energy-optimised hydraulic system and heavy-duty construction
