saturated steam boiler / biomass / compact
THOR series

Add to MyDirectIndustry favorites
Compare this product

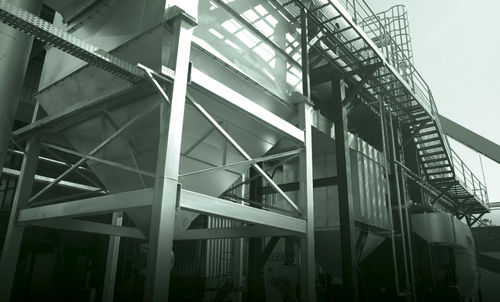

saturated steam boiler / biomass / compact saturated steam boiler / biomass / compact - THOR series
{{requestButtons}}

Characteristics

  • Product:

    saturated steam

  • Power source:

    biomass

  • Other characteristics:

    compact

  • Steam production:

    Max.: 40,000 kg/h (88,184.9 lb/h)

    Min.: 4,000 kg/h (8,818.49 lb/h)

  • Power:

    2,070.14 W (7,063.61 BTU/h)

  • Pressure:

    12 bar (174.05 psi)

Description

Engeman boilers have reached a new quality, efficiency and safety level. Engeman boilers are built according to the ASME standard using high-level raw materials and with strict quality. They can produce from 4 to 40 TPH of saturated steam at pressures of up to 21 kgf/cm2, for several different applications.

Engebio boilers can be set up to burn woodchips, sawdust, and other kinds of biomass like coffee husks, rice hulls, corncobs, etc.

The VULCANO boiler is a new lower cost design that provides greater savings. It is more compact and changed the boiler market by producing up to 8 TPH with stationary or moving grates.

TITAN and THOR boilers are ideal for burning biomass with moisture contents even greater than 45%. They are larger and more robust boilers, and their design includes greater automation and control. Each design is customized, and our company offers a range of fixtures designed to meet the specific requirements of each customer.
