C clamp ELXBX-138

springsafetystainless steel

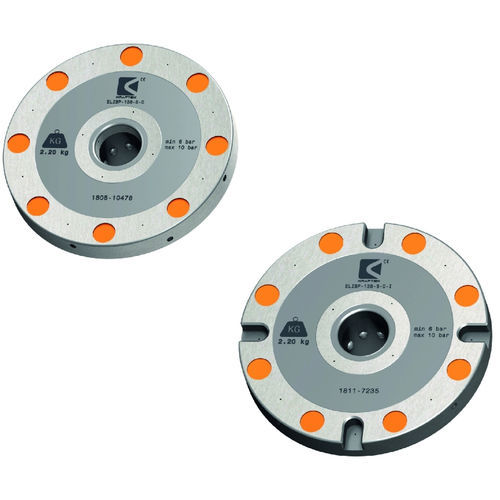

The Easylock ELxBx-138 clamping module positions and clamps workpieces or fixtures with a repeat accuracy of less than 5 μm. Piston with central hole (holding nut in the piston base). EASYLOCK system locks through spring forces the clamping pin in rest position. A safety system guarantee. It can be opened hydraulically (ELxBH-138) or pneumatically (ELxBP-138). This zero point system is in hardened steel (ELABx-138), or treated stainless steel (ELIBx-138). The unit can be equipped with a blow-out system (-S), an unlocking control system (-C), or an indexing system (-I). The set screws, their cover caps, the seals and the indexing pin are delivered with the module. The respective clamping pins are: TELB-138 pull-stud pin TDELB-138 positioning pin TCELB-138 centering pin
