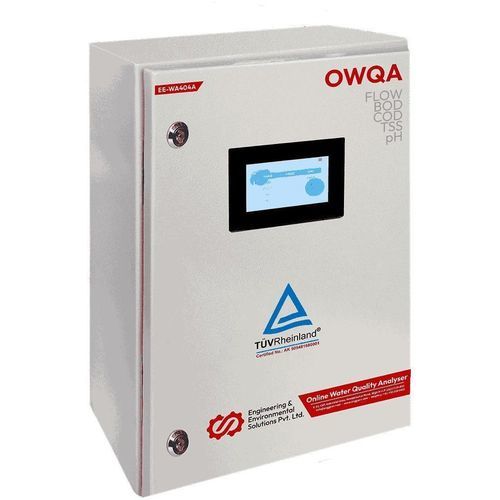

Water analyser WQA

monitoringprocessCEMS

**Product Overview**
Water Analyzer from Engineering and Environmental Solutions (E&E) is designed to provide precise water quality monitoring. Large-scale data storage and automatic zero calibration guarantee reliable accuracy with little maintenance. The analyzer is versatile enough to meet a wide range of testing requirements because it covers multiple physiochemical parameters such as conductivity, pH, and chlorine.

• UV-Visible Spectroscopy & Amperometry
• Measures COD, BOD, pH, TSS, Chlorine
• RS-485 Analog Output
• TUV Certified

**Features**

• Analytics by UV-Visible spectroscopy method
• For physiochemical parameters including pH, ORP, chlorine, conductivity, or turbidity, additional external probes can be added
• Auto zero done on cleaning solution
• Enables a very high level of suspended solids without clogging in all-optical experiments, making it suitable for industrial use
• Automatic cleaning system with an extremely long lifetime lamp, minimizing maintenance to periodic refill of the cleaning solution
• RS485 analog output for real time data
• Can be operated in automatic mode
• Automatic screen shutdown
• TUV Certified
• Data transfer PDF/Excel report from the server
• Server for uploading data to CPCB/SPCB

**Technical Specifications**
Material | Mild Steel with Powder Coat
Type | Wall mounted
Protection | IP65
Display | 7" TFT color screen 16/9 (LED backlight)
Weight | 30kg
Dimension (HxWxD) | 700x500x250mm

**Sensor Specifications**
Type | Details
TDS | Range: 0-20g/L, Precision: -3%, Response time: 15s
pH | Range: 0-14pH, Response time: 15s, Operating temperature: -20°C to 80°C, Operating pressure: <+10%
Dissolved Oxygen (DO) | DO Content Range: 0-20 mg/L, DO% Saturation Range: 0-200%, Precision: -3%, Response time: 15s

**Applications**

• Online air monitoring
• Industrial production process monitoring
• Industrial combustion efficiency monitoring
• Desulfurization process monitoring
• Denitration process monitoring
• Industrial furnaces Cement plant
• Industrial Coal-fired boiler Incinerators
• CEMS integrator

**Frequently Asked Questions**

• Types of water tested: drinking water, wastewater, and natural water bodies like rivers and lakes
• Calibration frequency: approximately once a year
• Compliance: Yes, compliant with Indian environmental and pollution control standards for water quality testing

**Key Benefits**
E&E Products deliver eco-friendly solutions that reduce emissions, improve energy efficiency, and minimize waste. Designed for sustainability, these products help create cleaner air, safer water, and a healthier planet.

**Characteristics / Technical Specifications**

• Analytics by UV-Visible spectroscopy method
• Additional external probes for pH, ORP, chlorine, conductivity, turbidity
• Auto zero calibration
• High suspended solids tolerance
• Automatic cleaning system with long-life lamp
• RS485 analog output
• Automatic mode operation
• Automatic screen shutdown
• TUV Certified
• Data transfer PDF/Excel report
• Server for CPCB/SPCB data upload
• Material: Mild Steel with Powder Coat
• Wall mounted, IP65 protection
• 7" TFT color screen (LED backlight)
• Weight: 30kg
• Dimensions: 700x500x250mm
• TDS Sensor: 0-20g/L, -3% precision, 15s response
• pH Sensor: 0-14pH, 15s response, -20°C to 80°C
• DO Sensor: 0-20 mg/L, 0-200% saturation, -3% precision, 15s response
