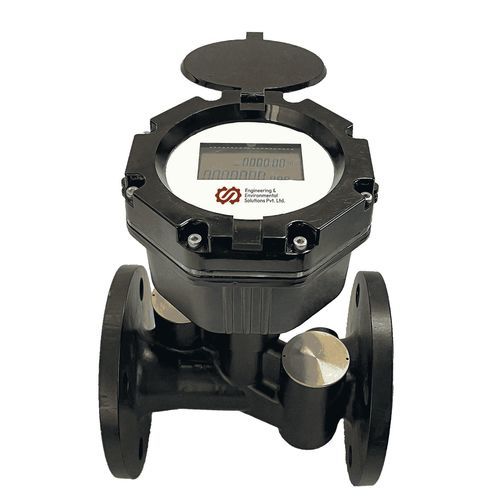

Ultrasonic transit-time flow meter EE-UWFM-DNX

volumefor waterslurry

Product Overview
Ultrasonic Flow meter EE-UWFM-DNX is an advanced inline ultrasonic water flow meter designed for real-time water management. It addresses the challenges of rising water costs and environmental impact by providing a complete water management solution with cutting-edge technology. The Pravaah model by E&E Solutions offers features that go beyond traditional meters.

• Ultrasonic transit time principle.
• 4G/LTE based remote monitoring.
• Emergency alerts & Dashboard support.

Features
Suitable for a wide range of flow rates.
Built-in remote communication module can make various communication protocols.
High accuracy with advanced signal processing.
Low maintenance requirements.
Improved productivity due to shorter installation times and no downtime.
No risk of leakage.

Technical Specifications
Material | Cast Iron
Available Sizes | DN25 to DN200
Weight (DN25 to DN200) | 500 gms to 28 Kgs
Mounting Style | Threaded/ Flange
Certification Metrology | ISO 4064:2014
Mounting Style | Horizontal

Sensor Specifications
Type | Details
Working Principle | Ultrasonic Transit Time
Transducer Resonant Frequency | 1 Mhz
Temperature Range | 5 to 55
Pressure Range | 0.03 MPa to 1.6 MPa
Accuracy | ±2%
Ingress Protection | Ip68
Connectivity | LTE (4G)
Display | LCD/ 60x40(35) mm
Enclosure Material | ABS (DN25) Above DN40, die cast Aluminium

Applications

• Suitable for all conductive application.
• From clean liquid to slurries and pastes with high solids content.
• Energy measurement in commercial building.
• Abrasion, chemical & vacuum resistance.
• Suitable for high temperatures.

FAQs (Selection)

• While primarily designed for water, the flow meter can also measure slurry liquids with particle concentrations, making it versatile for different applications.
• Compatible with data logging systems and can transmit data wirelessly or via a cloud-based platform, accessible remotely through an Android app.
• Installation is straightforward: the meter clamps onto the exterior of the pipe, without the need to cut or modify the pipe.

Key Benefits of E&E Products

• Eco-friendly solutions that reduce emissions, improve energy efficiency, and minimize waste.
• Designed for sustainability, helping create cleaner air, safer water, and a healthier planet.
• Industry leading sensor technology for accurate and reliable data in real-time.
• Powerful software platform for actionable insights.
• Value adding services to enhance product value.

Characteristics / Technical Specifications

• Model: EE-UWFM-DNX
• Material: Cast Iron
• Available Sizes: DN25 to DN200
• Weight: 500 gms to 28 Kgs
• Mounting Style: Threaded/Flange, Horizontal
• Certification: ISO 4064:2014
• Working Principle: Ultrasonic Transit Time
• Transducer Resonant Frequency: 1 MHz
• Temperature Range: 5 to 55°C
• Pressure Range: 0.03 MPa to 1.6 MPa
• Accuracy: ±2%
• Ingress Protection: IP68
• Connectivity: LTE (4G)
• Display: LCD/ 60x40(35) mm
• Enclosure Material: ABS (DN25), Above DN40: die cast Aluminium
