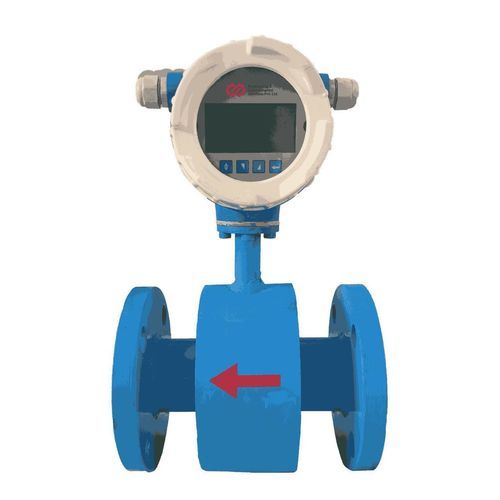

Electromagnetic flow meter EWFM

volumefor waterfor chemicals

Product Overview
A high-precision device designed to measure the flow of liquids, gases, and vapours with exceptional accuracy across various industrial applications. Utilizing Faraday's law of electromagnetic induction, it ensures reliable data without pressure drop or mechanical obstructions, making it ideal for harsh environments.

• Electromagnetic Induction
• RS-485 Modbus RTU based communication
• Emergency Alerts & Dashboard Support

Features

• Unaffected by temperature, pressure, density, or liquid viscosity.
• Ideal for measuring slurries and other erosive fluids.
• Capable of handling most acids, bases, water, and water-based solutions.
• Requires minimal electrode metals.
• Features cloud server connectivity for seamless data integration.
• Measures multi-directional flow, both upstream and downstream.
• Low maintenance due to the absence of moving parts.

Technical Specifications
Measurement Range | 0-200 ppm
Accuracy | ±2% of reading
Response Time | Less than 60 seconds
Output Signal | 4-20 mA, RS485
Power Supply | 220V AC, 50Hz

Sensor Specifications
Type | Details
Line Size | 15 NB to 600 NB
Flow Units | M3/H, M3/M, M3/S, L/H, L/M, L/S, USG/H, USG/M, USG/S
Output | 4-20 mA & Pulse or RS485
Power Supply | 220 VAC/24 VDC
Process Temperature | Up to 80 Degree Celsius For Rubber, Up to 150 Degree Celsius For PTFE
Working Principle | Faraday's Law
IP Rating | IP65

Applications

• Quantification of potable water
• Construction sites
• Petroleum plants
• Water distribution system
• Inlet and outlet pipe of Over head tank

Frequently Asked Questions

• Can this meter be used in industries with high-flow water systems? Yes, it is designed for high-flow water systems and provides accurate measurements in industrial environments.
• Does the meter require any moving parts for operation? No, the electromagnetic flow meter has no moving parts, which reduces wear and tear and minimizes maintenance needs.
• Is this meter suitable for use in irrigation projects? Yes, it is widely used in agricultural and irrigation systems to monitor water usage accurately.

Key Benefits of E&E Products
E&E Products deliver eco-friendly solutions that reduce emissions, improve energy efficiency, and minimize waste. Designed for sustainability, these products help create cleaner air, safer water, and a healthier planet. Embrace green manufacturing with E&E.
Characteristics / Technical Specifications

• Measurement Range: 0-200 ppm
• Accuracy: ±2% of reading
• Response Time: Less than 60 seconds
• Output Signal: 4-20 mA, RS485
• Power Supply: 220V AC, 50Hz or 220 VAC/24 VDC
• Line Size: 15 NB to 600 NB
• Flow Units: M3/H, M3/M, M3/S, L/H, L/M, L/S, USG/H, USG/M, USG/S
• Process Temperature: Up to 80°C (Rubber), Up to 150°C (PTFE)
• Working Principle: Faraday's Law
• IP Rating: IP65
