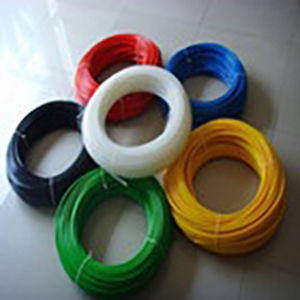

Hydraulic hose SAE 100R7/SAE 100R8syntheticthermoplasticmedium-pressure
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic, thermoplastic
- Applications
- medium-pressure
- Other characteristics
- abrasion-resistant, oil-resistant, weather-resistant, reinforced, multi-color
- Inner diameter
Max.: 25 mm
(0.984 in)Min.: 5 mm
(0.197 in)- Outer diameter
Max.: 36.7 mm
(1.445 in)Min.: 11.4 mm
(0.449 in)- Pressure
Max.: 3,045 psi
Min.: 1,015 psi
- Temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description
SAE 100R7/SAE 100R8
Recommended For
medium-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R7 AT.
Tube
White,oil resistant, thermoplastic layer.
Reinforcement
Synthetic fiber
Cover
Colorful, oil, abrasion and weather resistant, thermoplastic cover.
Temperature Range
-40℉ to +250℉ (-40℃ to +120℃)
