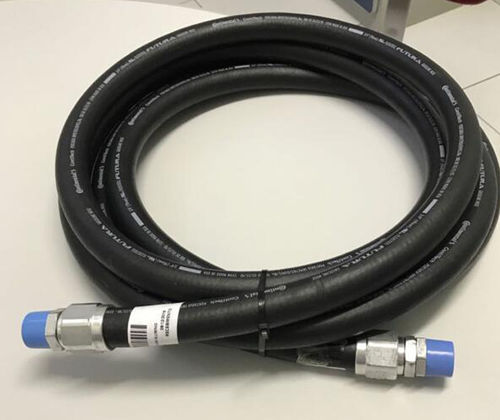

Gasoline hose FW seriesfor hydrocarbonssynthetic rubbersteel
Add to favorites
Compare this product
Characteristics
- Use
- for gasoline, for hydrocarbons
- Material
- synthetic rubber, steel
- Applications
- high-pressure, transport
- Other characteristics
- smooth, oil-resistant, weather-resistant, steel-braided
- Inner diameter
0.625 in, 0.75 in, 1 in
- Outer diameter
25 mm, 29.5 mm, 36.5 mm
(0.984 in, 1.161 in, 1.437 in)- Pressure
18 bar
(261.068 psi)- Temperature
Max.: 121 °C
(249.8 °F)Min.: -40 °C
(-40 °F)
Description
Gasoline Hose
KEY PERFORMANCE
EN/DIN and new SAE rated working pressures
Appearance:Smooth or Wrap
Branding: Printing and indelible branding with embossed technology
Colour: Black, red, blue, yellow, green, gray
PRODUCT DETAILS
• APPLICATIONS &FLUIDS
Hydraulics: High-medium pressure Unes
For general refueling equipment to convey aviation kerosene. gasoline s diesel oil and other minerai oil.
• CONTINUOUS SERVICE TEMPERATURE RANGE: -40* F /+250'F; -40*C /-121*C
• INSERT: SHF-TYPE
• TUBE: OIL RESISTANT SYNTHETIC RUBBER REINFORCEMENT: ONE HIGH TENSILE STEEL BRAID
• COVER: OIL RESISTANT, ENVIRONMENT RESISTANT SYNTHETIC RUBBER
