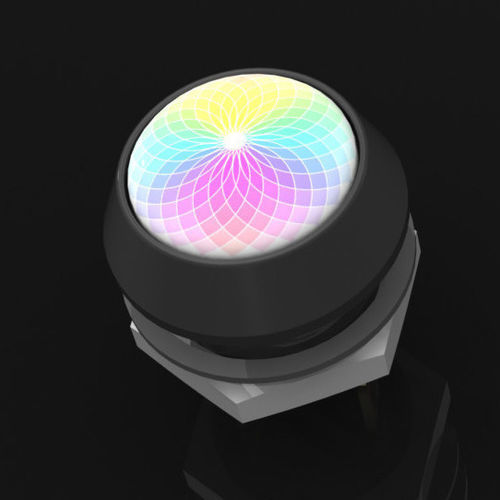

Touch push-button switch FL.series RGB

IP67LEDcustom

Discover the FL.series RGB by EOZ, an innovative range that redefines the standards of customizable lighting. Thanks to its intuitive button, easily scroll through all the hues of the RGB palette. Choose your favorite colors and predefine the ones you want to display first, for an experience perfectly suited to your desires. Designed and manufactured in France, our Ø12 mm and Ø13.5 mm buttons, IK & IP tested, combine robustness, high-end finish and lasting customization for all demanding environments. Thanks to careful aesthetics, advanced lighting technology and excellent visibility, the FL.series is a solution of choice for industrial, electronic and embedded applications. Electrical: Dielectric strength: 2500 VAC Insulation resistance: 1 GΩ Contact resistance < 50mΩ (max) Contact travel: 1.2mm ± 0.3mm Electrical life: 500,000 cycles Rated current: 400mA at 32 VAC 100mA at 50 VAC 125mA at 125 VAC Environmental: IK06 front panel Operating temperature: -40°C to +85°C Storage temperature: -40°C to +85°C Salt fog: 48 hours Cyclic temperature/humidity test (IEC 60068-2-38): 240 hours (cycles from -10°C to 65°C / 93% humidity) Soldering iron soldering: 250°C max for 3 seconds Total Travel: 2mm ± 0.3mm Actuation Force: 5 N±30% Panel Thickness: 1 – 6 mm (max) Terminal Type: 2.8 x 0.5mm Plug-in Switching Mode: Momentary Tightening Torque: 0.3 Nm Mechanical Life: 1,000,000 cycles (max)
